Same model may have multiple batches, images only for reference.

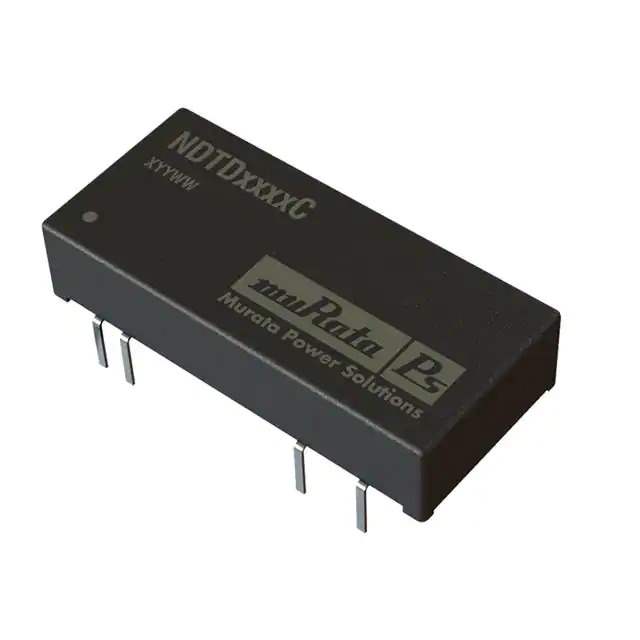

NDTD2412C Real Image
Same model may have multiple batches, images only for reference.

NDTD2412C

Part No NDTD2412C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 3W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDTD (3W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 125mA, 125mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Type Through Hole
Package / Case 24-DIP Module (600 mil, 8 Leads)
Size / Dimension 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number NDTD24
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648217-NDTD2412C
Ultra Librarian 3D Model Ultra Librarian NDTD2412C CAD Model

Description

The 648217-NDTD2412C is a 3W power supply DC-DC converter module from Murata Power Solutions Inc.

  • Series: NDTD series
  • Power: 3W
  • Module Type: isolated
  • Application: ITE (Commercial)
  • Package Size: 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
  • Mounting Type: Through-Hole
  • Outputs: 2
  • Maximum Output Current: 125mA each
  • Input Voltage Range: 18V to 36V
  • Output Voltages: 12V and -12V
  • Efficiency: 82%
  • Voltage Isolation: 1 kV
  • Operating Temperature: -40°C to 85°C
  • Package: 24-DIP module, 8 leads
  • Status: Active
