Same model may have multiple batches, images only for reference.

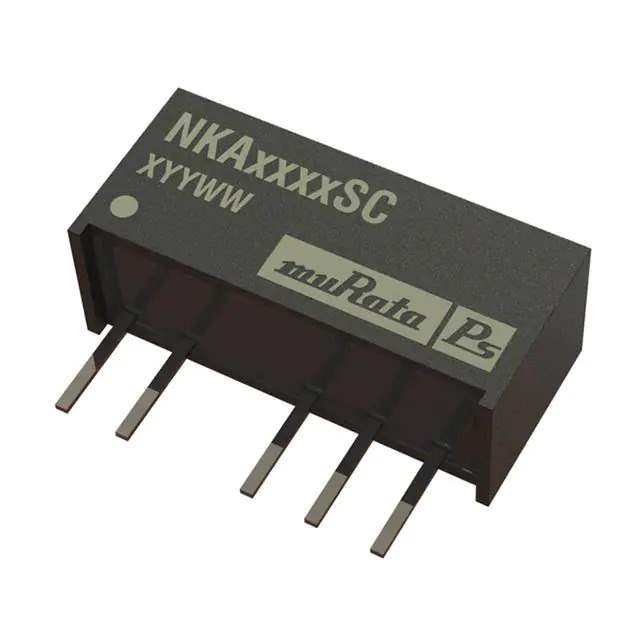

NKA0305SC Real Image
Same model may have multiple batches, images only for reference.

NKA0305SC

Part No NKA0305SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NKA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 3V
Voltage - Input (Max) 3.6V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 79%
Mounting Type Through Hole
Package / Case 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA03
Standard Package 30 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648809-NKA0305SC
Ultra Librarian 3D Model Ultra Librarian NKA0305SC CAD Model

Description

The NKA0305SC is a 1W isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

  • Product Category: DC-DC Converter
  • Manufacturer: Murata Power Solutions Inc.
  • Series: NKA
  • Power: 1W
  • Mounting Style: Board Mount
  • Voltage Isolation: 3 kV
  • Number of Outputs: 2
  • Maximum Output Current: 100mA each output
  • Input Voltage Range: 3V to 3.6V
  • Output Voltages: 5V and -5V
  • Efficiency: 79%
  • Package: 6-SIP module with 5 leads
  • Application: ITE (Commercial)
  • Operating Temperature Range: -40°C to 85°C
  • Product Status: Active
