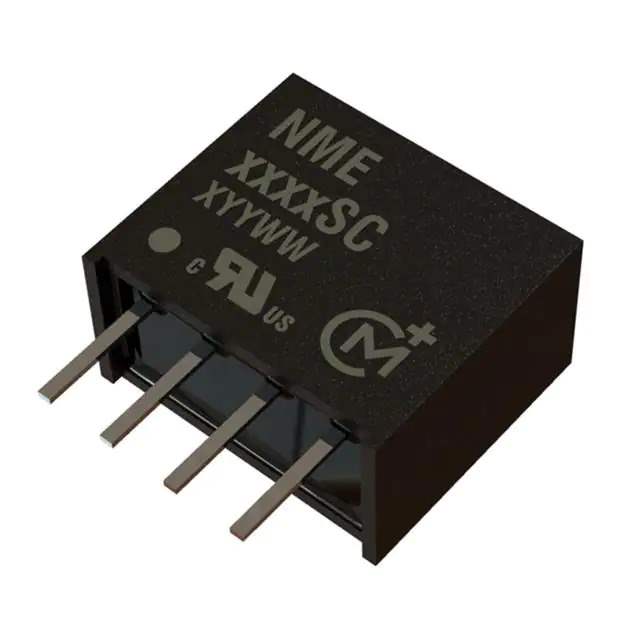

NME2405SC

Part No NME2405SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NME (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating 0°C ~ 70°C
Efficiency 70%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm)
Base Product Number NME24
Standard Package 35 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649143-NME2405SC
Ultra Librarian 3D Model Ultra Librarian NME2405SC CAD Model

Description

The NME2405SC is a 1W isolated module DC-DC converter from the NME series by Murata Power Solutions Inc.

  • Series: NME
  • Application: Power supplies in board mount applications, specifically in the power supplies of commercial information technology equipment (ITE)
  • Package: Tube
  • Dimensions: 0.45" L x 0.24" W x 0.39" H (11.4mm x 6.1mm x 9.9mm)
  • Outputs: Single output
  • Maximum Output Current: 200mA
  • Input Voltage Range: 21.6V to 26.4V
  • Output Voltage: 5V
  • Voltage Isolation: 1 kV
  • Efficiency: 70%
  • Mounting Type: Through-hole
  • Operating Temperature: 0°C to 70°C
  • Status: Active
