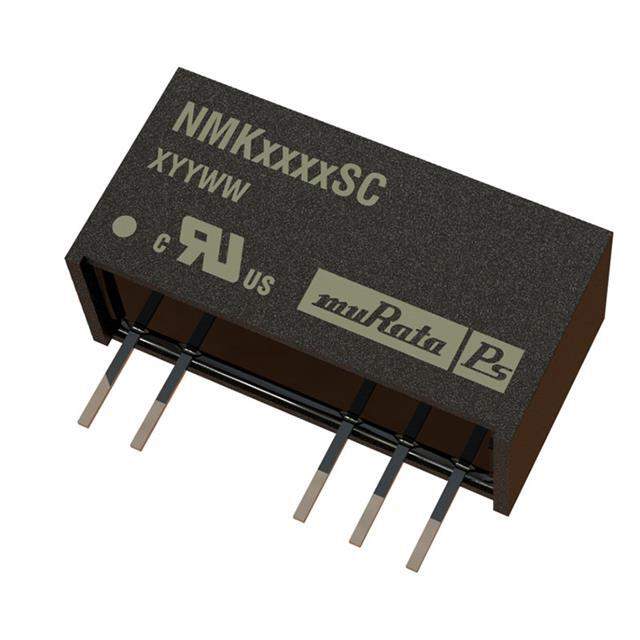

NMK1215SC Real Image
Same model may have multiple batches, images only for reference.

NMK1215SC

Part No NMK1215SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER +/-15V 2W / Module DC-DC 12VIN 2-OUT 15V/-15V 0.067A/-0.67A 2W 5-Pin SIP Tube
Datasheet
NMK1215SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMK
Packaging Tube
Type Isolated Module
Number of Outputs 2
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Maximum) 67mA, 67mA
Power (Watts) 2W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Win Source Part Number 790753-NMK1215SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMK1215S
Introduction Date October 24, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMK1215SC CAD Model

Description

The Murata Power Solutions Inc. NMK1215SC is an isolated module designed for ITE (Commercial) applications.

  • Package: 7-SIP Module, 5 Leads
  • Output 1 Current: 67mA
  • Output 2 Current: 67mA
  • Voltage Isolation: 3kV (3000V)
  • Efficiency: 87%
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
  • Output 1 Voltage: 15V
  • Output 2 Voltage: -15V
  • Estimated EOL Date: 2027
  • Supply and Demand Status: Limited
