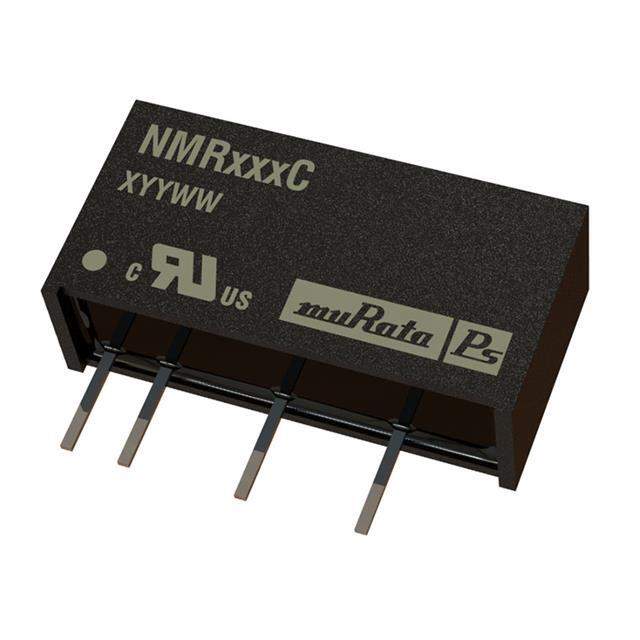

NMR101C Real Image
Same model may have multiple batches, images only for reference.

NMR101C

Part No NMR101C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 12V SIP SGL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMR
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Current - Output (Max) 83mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (4 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 77%
Power (Watts) - Max 1W
Catalog NMR Series
Win Source Part Number 045303-NMR101C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMR101C CAD Model

Description

The NMR101C is a DC DC Converter module manufactured by Murata Power Solutions Inc..

  • Supply and Demand Status: Limited
  • Type: Isolated module
  • Voltage Isolation: 1kV
  • Efficiency: 77%
  • Operating Temperature Range: -40°C to 85°C
  • Maximum Output Current: 83mA
  • Package: 7-SIP module (4 leads)
  • Size/Dimension: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
  • Application: ITE (Commercial)
  • Standard Package: 25
