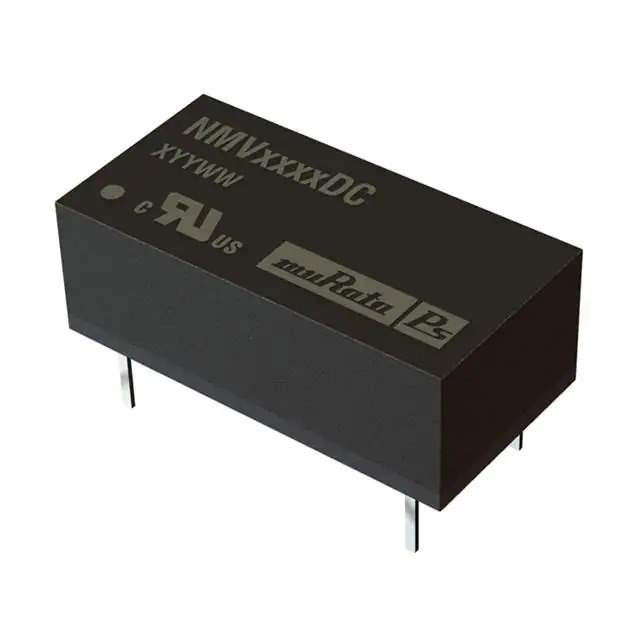

Same model may have multiple batches, images only for reference.

NMV0505DC

Name: NMV0505DC
Brand: Murata Power Solutions Inc.
SKU: 649202
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMV0505DC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMV (1W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	100mA, 100mA
Power (Watts)	1 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	71.5%
Mounting Type	Through Hole
Package / Case	14-DIP Module, 6 Leads
Size / Dimension	0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Base Product Number	NMV05
Standard Package	25 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	649202-NMV0505DC
Ultra Librarian 3D Model	Ultra Librarian NMV0505DC CAD Model

Alternative Products

Description

The NMV0505DC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc.

Series: NMV
Application: Power Supplies in Board Mount Applications
Size: 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Package: Tube
Voltage Isolation: 3 kV
Outputs: Two
Maximum Output Current: 100mA each
Input Voltage: 4.5V to 5.5V
Output Voltages: 5V and -5V
Efficiency: 71.5%
Temperature Range: -40°C to 85°C
Applications: ITE (Commercial)
Standard Package: 25 pcs
Mounting: Through-Hole
Status: Active
