Same model may have multiple batches, images only for reference.

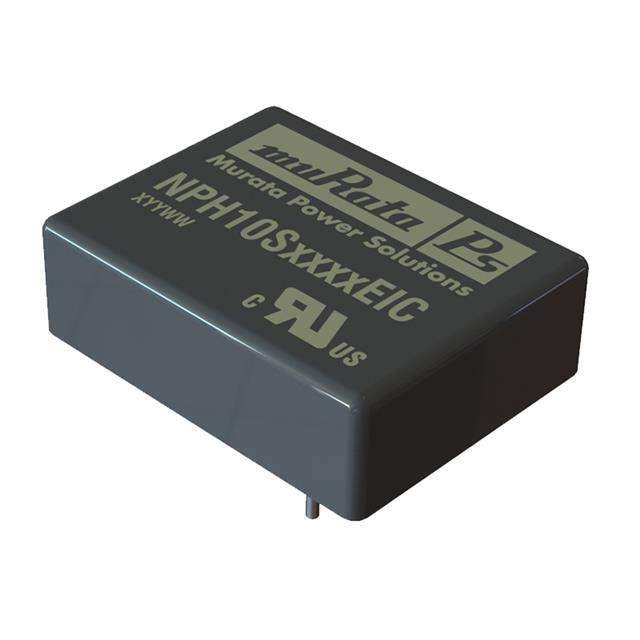

NPH10S2412EIC Real Image
Same model may have multiple batches, images only for reference.

NPH10S2412EIC

Part No NPH10S2412EIC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12.1V 10W / Isolated Module DC DC Converter 1 Output 12.1V 830mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NPH10S (10W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12.1V
Current - Output (Max) 830mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 110°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)
Base Product Number NPH10S24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-1627-5
Standard Package 15
Win Source Part Number 1018132-NPH10S2412EIC
Ultra Librarian 3D Model Ultra Librarian NPH10S2412EIC CAD Model

Description

The Murata Power Solutions Inc. NPH10S2412EIC is a DC-DC converter designed for power supplies - board mount applications. Bold the product name (e.g., BAV99S,135 → NPH10S2412EIC) and manufacturer (e.g., Nexperia USA Inc. → Murata Power Solutions Inc.).

  • Series: NPH10S (10W)
  • Packaging: 6-DIP Module
  • Isolation: Isolated
  • Voltage Isolation: 1.5kV
  • Number of Outputs: 1
  • Maximum Output Current: 830mA
  • Input Voltage Range: 18V to 36V
  • Output Voltage: 12.1V
  • Power Rating: 10W
  • Efficiency: 86%
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Size Dimension: 1.26" L x 0.98" W x 0.39" H (32.0mm x 24.9mm x 9.9mm)
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
