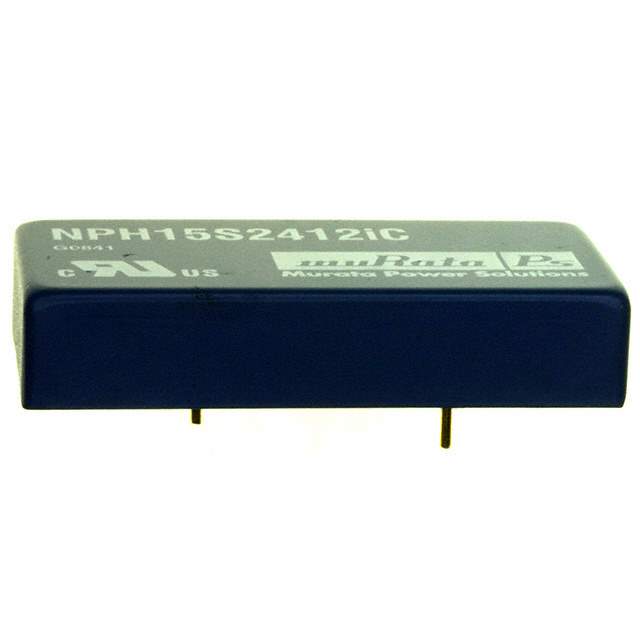

NPH15S2412IC Real Image1 NPH15S2412IC Real Image2
Same model may have multiple batches, images only for reference.
NPH15S2412IC Real Image1 NPH15S2412IC Real Image2
NPH15S2412IC Real Image1 NPH15S2412IC Real Image2
Same model may have multiple batches, images only for reference.

NPH15S2412IC

Part No NPH15S2412IC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12.1V 15W / Isolated Module DC DC Converter 1 Output 12.1V 1.3A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NPH15S (15W)
Package Tube
Product Status Not For New Designs
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12.1V
Current - Output (Max) 1.3A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 110°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm)
Base Product Number NPH15S24
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-1638-5
Standard Package 20
Win Source Part Number 1017796-NPH15S2412IC
Ultra Librarian 3D Model Ultra Librarian NPH15S2412IC CAD Model

Description

The NPH15S2412IC is an electronic component manufactured by Murata Power Solutions Inc.

  • Series: NPH15S
  • Power: 15W
  • Input Voltage Range: 18V to 36V
  • Efficiency: 86%
  • Application: ITE (Commercial)
  • Voltage Isolation: 1.5 kV
