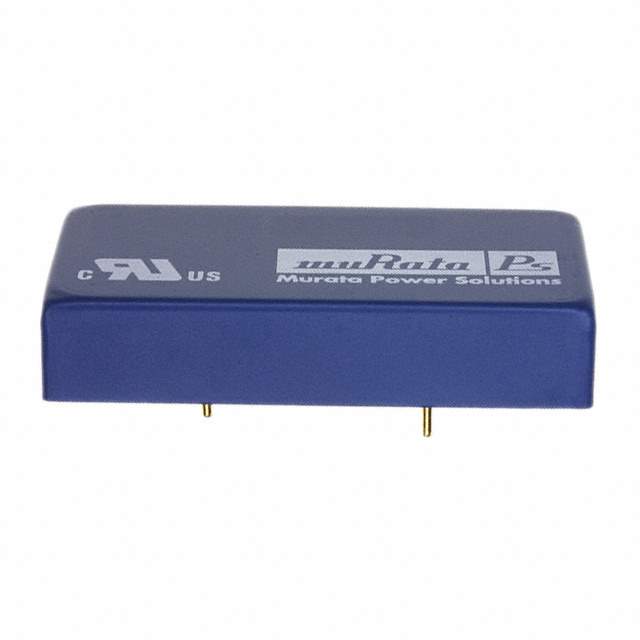

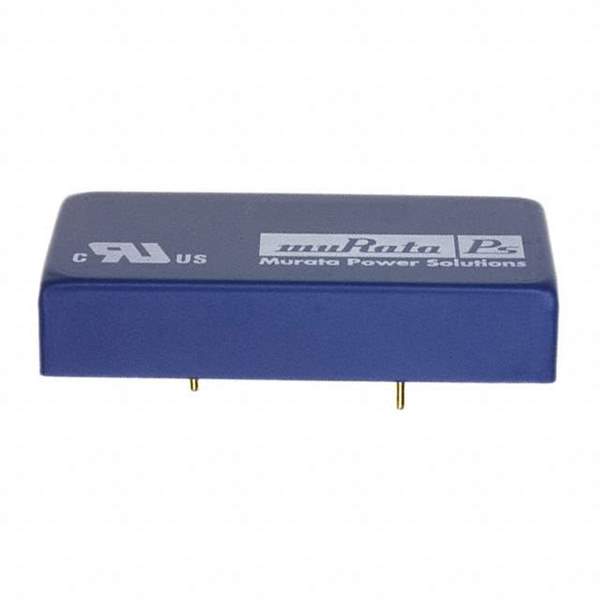

Same model may have multiple batches, images only for reference.

NPH15S4805EIC

Get a Quote

Part No	NPH15S4805EIC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5.1V 15W / Isolated Module DC DC Converter 1 Output 5.1V 3A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NPH15S (15W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5.1V
Current - Output (Max)	3A
Power (Watts)	15 W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 110°C
Efficiency	85%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.97" L x 0.98" W x 0.39" H (50.0mm x 24.9mm x 9.9mm)
Base Product Number	NPH15S48
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Standard Package	20
Win Source Part Number	1016792-NPH15S4805EIC
Ultra Librarian 3D Model	Ultra Librarian NPH15S4805EIC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. NPH15S4805EIC series isolated module is a DC-DC converter designed for ITE (Commercial) applications.

Application: ITE (Commercial)
Power: 15 W
Voltage Isolation: 1.5 kV
Mounting Type: Through Hole
Package Size: 6-DIP Module
Standard Package: 20
Package: Tube
Current Output: 3A
Efficiency: 85%
Voltage Input: 36V to 75V
Voltage Output: 5.1V
HTSUS: 8504.40.9580
Series: NPH15S (15W)
Base Product Number: NPH15S48
