Same model may have multiple batches, images only for reference.

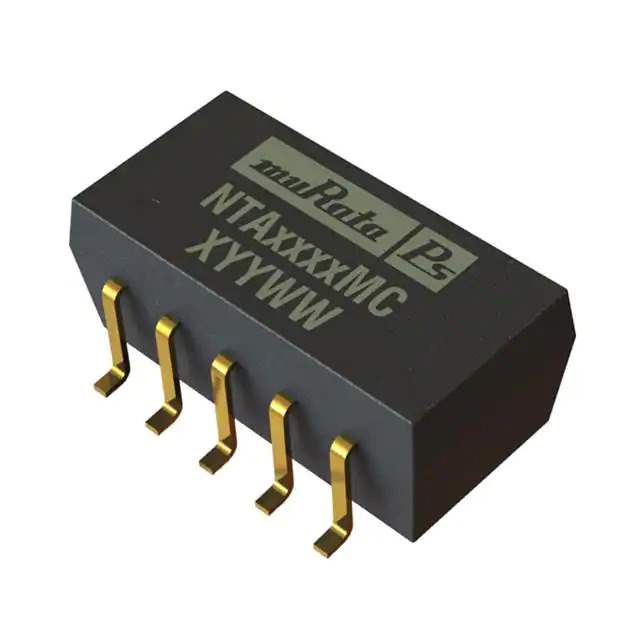

NTA0515MC Real Image
Same model may have multiple batches, images only for reference.

NTA0515MC

Part No NTA0515MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Surface Mount
Package / Case 18-SMD Module, 10 Leads
Size / Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Base Product Number NTA05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649616-NTA0515MC
Ultra Librarian 3D Model Ultra Librarian NTA0515MC CAD Model

Description

The NTA0515MC is a 1W isolated module DC-DC converter from Murata Power Solutions Inc. NTA0515MC is from Murata Power Solutions Inc.

  • Power: 1W
  • Series: NTA
  • Voltage Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Current per Output: 33mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltages: 15V and -15V
  • Efficiency: 78%
  • Packaging: Tube
  • Size: 0.60" L x 0.30" W x 0.26" H
  • Mounting Type: Surface Mount
  • Package: 18-SMD
  • Number of Leads: 10
  • Operating Temperature: -40°C to 85°C
  • Application: ITE (Commercial)
  • Standard Package: 25 pcs
