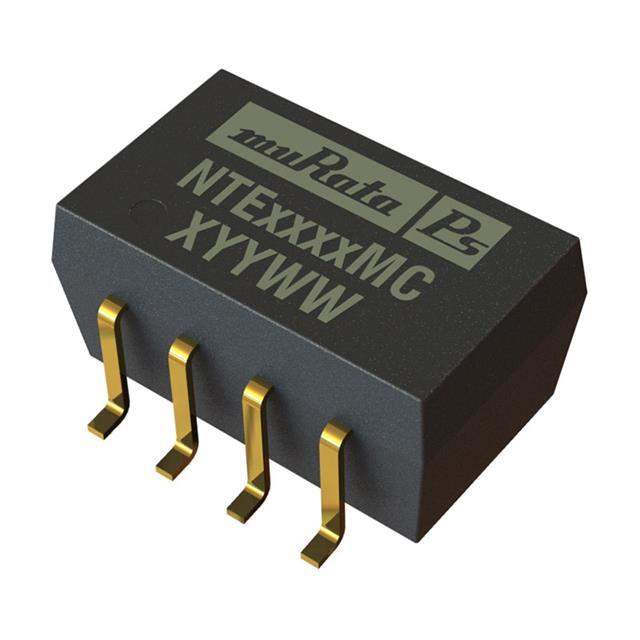

NTE0505MEC Real Image
Same model may have multiple batches, images only for reference.

NTE0505MEC

Part No NTE0505MEC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC SM 1W 5VIN 5VOUT SGL
Datasheet
NTE0505MEC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NTE
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style SMD/SMT
Package 14-SMD Module (8 Leads)
Size / Dimension 0.50" L x 0.30" W x 0.26" H (12.7mm x 7.6mm x 6.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 77%
Power (Watts) - Max 1W
Win Source Part Number 004196-NTE0505MEC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NTE0505MEC CAD Model

Description

The Murata Power Solutions Inc. NTE0505MEC is a DC DC converter that belongs to the power supplies - board mount category.

  • Popularity: medium
  • Supply and Demand Status: limited
  • Type: isolated module
  • Packaging: 14-SMD module (8 leads)
  • Application: ITE (commercial)
  • Voltage Isolation: 1kV (1000V)
  • Outputs: one
  • Output Current: 200mA (maximum)
  • Operating Temperature Range: -40°C ~ 85°C
  • Efficiency: 77%
