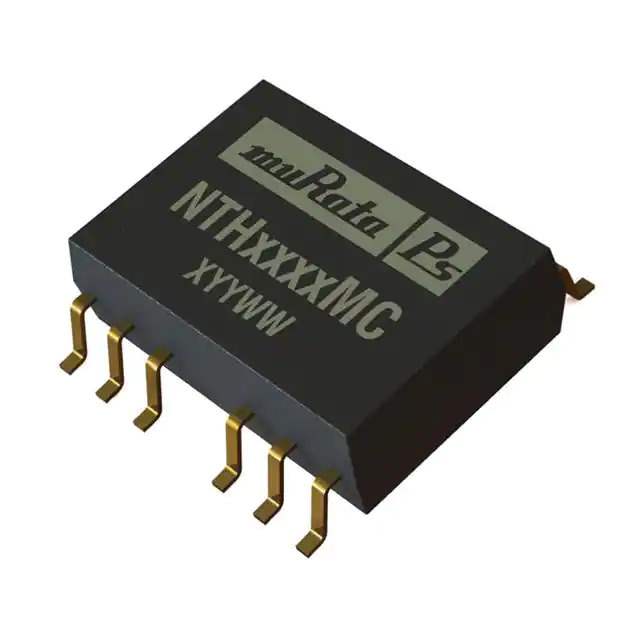

NTH1205MC Real Image
Same model may have multiple batches, images only for reference.

NTH1205MC

Part No NTH1205MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTH (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 200mA, 200mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 80%
Mounting Type Surface Mount
Package / Case 26-SMD Module, 12 Leads
Size / Dimension 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm)
Base Product Number NTH12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649806-NTH1205MC
Ultra Librarian 3D Model Ultra Librarian NTH1205MC CAD Model

Description

The NTH1205MC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NTH
  • Application: power supplies in board mount applications
  • Voltage Isolation: 1 kV
  • Outputs: two outputs with a maximum output current of 200mA each
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltages: 5V and -5V
  • Efficiency: 80%
  • Application: ITE (Commercial)
  • Package: 26-SMD module
  • Operating Temperature: -40°C to 85°C
