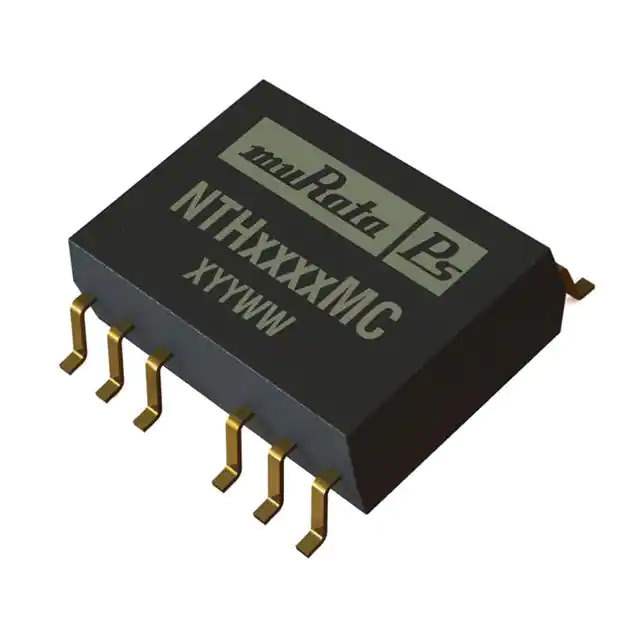

NTH1212MC Real Image
Same model may have multiple batches, images only for reference.

NTH1212MC

Part No NTH1212MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTH (2W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 83mA, 83mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Surface Mount
Package / Case 26-SMD Module, 12 Leads
Size / Dimension 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm)
Base Product Number NTH12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649808-NTH1212MC
Ultra Librarian 3D Model Ultra Librarian NTH1212MC CAD Model

Description

The NTH1212MC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NTH
  • Voltage Isolation: 1 kV
  • Outputs: Two
  • Maximum Output Current: 83mA each
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltages: 12V and -12V
  • Efficiency: 84%
  • Application: ITE (Commercial)
  • Package: 26-SMD module
  • Temperature Range: -40°C to 85°C
