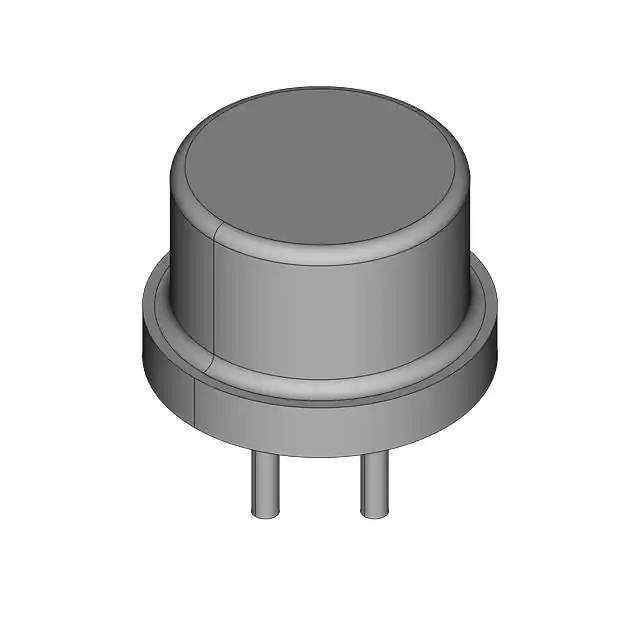

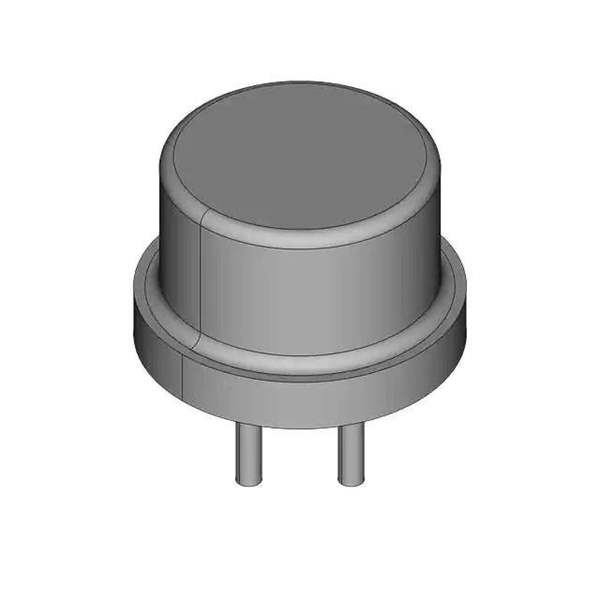

LM120H-12/883 Real Image
Same model may have multiple batches, images only for reference.

LM120H-12/883

Part No LM120H-12/883
Manufacturer National Semiconductor (TI)
Catalog PMIC - Voltage Regulators - Linear
Description LM120QML MILITARY GRADE 1A FIXED
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Voltage Regulators - Linear
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Output Configuration Negative
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) -25V
Voltage - Output (Min/Fixed) -12V
Current - Output 500mA
Current - Quiescent (Iq) 4 mA
PSRR 56dB (120Hz)
Protection Features Over Current, Over Temperature
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-205AD, TO-39-3 Metal Can
Supplier Device Package TO-39-3
Standard Package 1 pcs
HTSUS 0000.00.0000
Win Source Part Number 614086-LM120H-12/883
Ultra Librarian 3D Model Ultra Librarian LM120H-12/883 CAD Model

Description

The LM120H-12/883 is a linear voltage regulator integrated circuit (IC) manufactured by National Semiconductor (TI).

  • Category: Power Management, Voltage Regulators
  • Regulator Type: Fixed Output
  • Voltage Output: -12V
  • Current Output: 500mA
  • Voltage Input Range: Up to -25V
  • Mounting Package: Through-Hole
  • Standard Package: 1 piece
  • Protection: Over-Current and Over-Temperature
  • Quiescent Current: 4mA
  • Temperature Range: -55°C to 150°C
