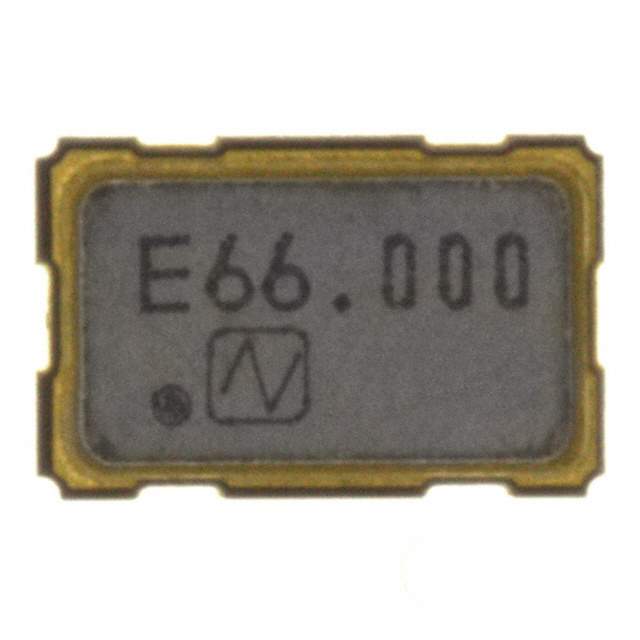

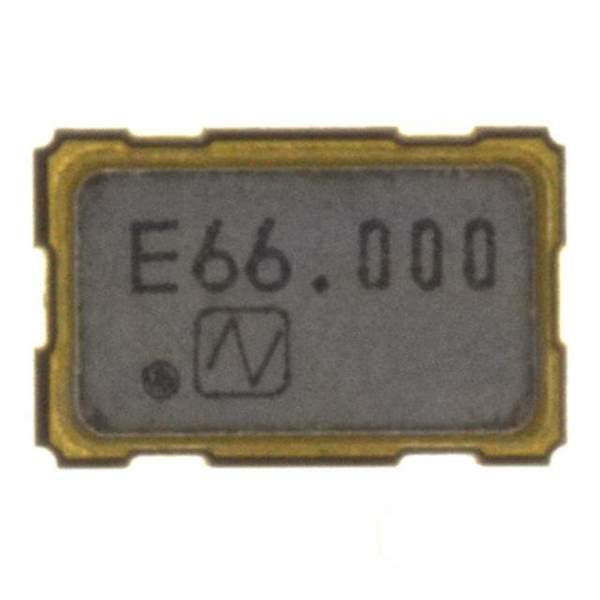

2765E-66.000000MHZ Real Image1 2765E-66.000000MHZ Real Image2
Same model may have multiple batches, images only for reference.
2765E-66.000000MHZ Real Image1 2765E-66.000000MHZ Real Image2
2765E-66.000000MHZ Real Image1 2765E-66.000000MHZ Real Image2
Same model may have multiple batches, images only for reference.

2765E-66.000000MHZ

Part No 2765E-66.000000MHZ
Manufacturer NDK
Catalog Oscillators
Description OSC XO 66.000MHZ CMOS SMD
Datasheet
2765E-66.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type XO (Standard)
Frequency 66MHz
Purpose Standby (Power Down)
Output CMOS
Supply Voltage - Operating 3.3V
Frequency Stability ±100ppm
Temperature Range - Operating -20°C to 70°C
Current - Supply (Max) 30mA
Mounting SMD (SMT)
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 30μA
Win Source Part Number 124754-2765E-66.000000MHZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2765E-66.000000MHZ CAD Model

Description

Overview of 2765E-66.000000MHZ

The 2765E-66.000000MHZ is an optimal frequency control solution known for its exceptional stability and reliability in high-demand environments.

Applications

  • Broadcasting equipment
  • High-performance computing
  • Advanced timing solutions

Features and Benefits

  • Superior frequency precision and stability
  • Compact size for smaller applications
  • Robust design for enhanced durability

Additional Details

This component is engineered to meet demanding performance standards, ensuring outstanding accuracy and reliability in critical frequency control applications.
