Same model may have multiple batches, images only for reference.

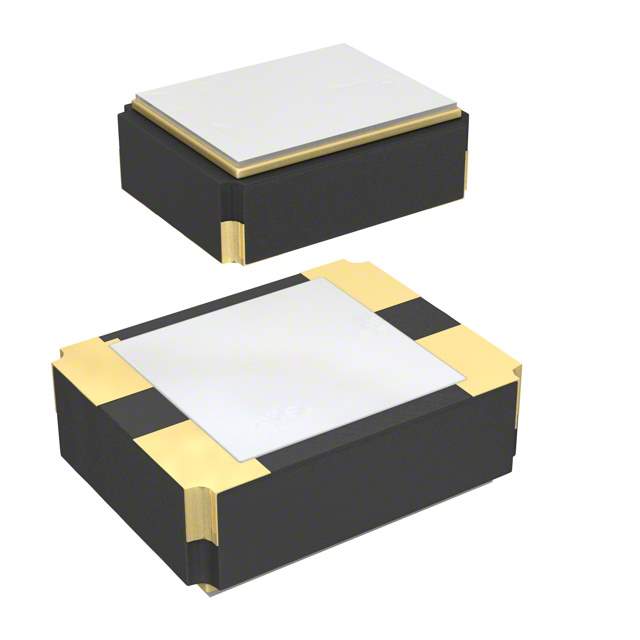

NT2016SA-26.000000MHZ-NBG2 Real Image
Same model may have multiple batches, images only for reference.

NT2016SA-26.000000MHZ-NBG2

Part No NT2016SA-26.000000MHZ-NBG2
Manufacturer NDK
Catalog Oscillators
Description OSC XO 26.000MHZ SINE WAVE SMD / Oscillator TCXO 26MHz ±2ppm (Tol) ±0.5ppm (Stability) 10pF Clipped Sinewave 60% 1.8V 4-Pin SMD
Datasheet
NT2016SA-26.000000MHZ-NBG2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Series NT2016SA
Packaging Reel package
Type TCXO
Frequency 26MHz
Output Clipped Sine Wave
Operating Supply Voltage 1.8V
Frequency Stability ±500ppb
Operating Temperature Range -30°C ~ 85°C
Maximum Supply Current 1.5mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Maximum) 0.031" (0.80mm)
Win Source Part Number 790829-NT2016SA-26.000000MHZ-NBG2
Popularity Medium
Supply and Demand Status Limited
Introduction Date February 16, 2012
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian NT2016SA-26.000000MHZ-NBG2 CAD Model

Description

The NDK America, Inc. 790829-NT2016SA-26.000000MHZ-NBG2 TCXO is a medium popularity crystal used in various electronic devices.

  • Family: Crystals, Oscillators, and Resonators
  • Supply and Demand Status: Limited
  • Frequency: 26MHz
