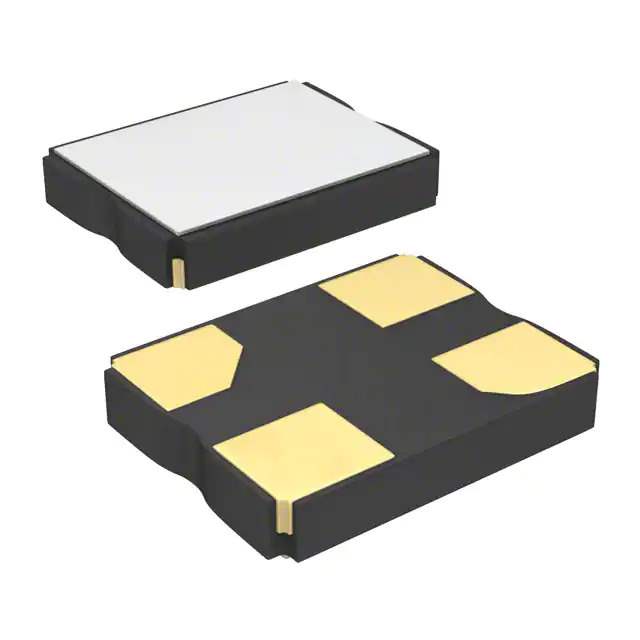

NX2520SG-19.2M-EXS00A-CS04340 Real Image
Same model may have multiple batches, images only for reference.

NX2520SG-19.2M-EXS00A-CS04340

Part No NX2520SG-19.2M-EXS00A-CS04340
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 19.2000MHZ 7PF SMD / 19.2 MHz ±10ppm Crystal 7pF 70 Ohms 4-SMD, No Lead
Datasheet
NX2520SG-19.2M-EXS00A-CS04340 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX2520SG
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 19.2 MHz
Frequency Stability ±12ppm
Frequency Tolerance ±10ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 70 Ohms
Operating Mode Fundamental
Temperature Range - Operating -30°C ~ 105°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 871332-NX2520SG-19.2M-EXS00A-CS04340
Ultra Librarian 3D Model Ultra Librarian NX2520SG-19.2M-EXS00A-CS04340 CAD Model

Description

The NX2520SG 19.2MHz crystal is a high-quality component used in electronic devices that require precise timing.

  • Manufacturer: NDK
  • Frequency: 19.2MHz
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Dimensions: 0.098" L x 0.079" W
  • Seated Height: 0.035"
  • Frequency Stability: ±12ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 7pF
  • ESR: 70 Ohms
  • Mode: Fundamental
  • Operating Temperature: -30°C to 105°C
  • Status: Active
  • Series: NX2520SG
