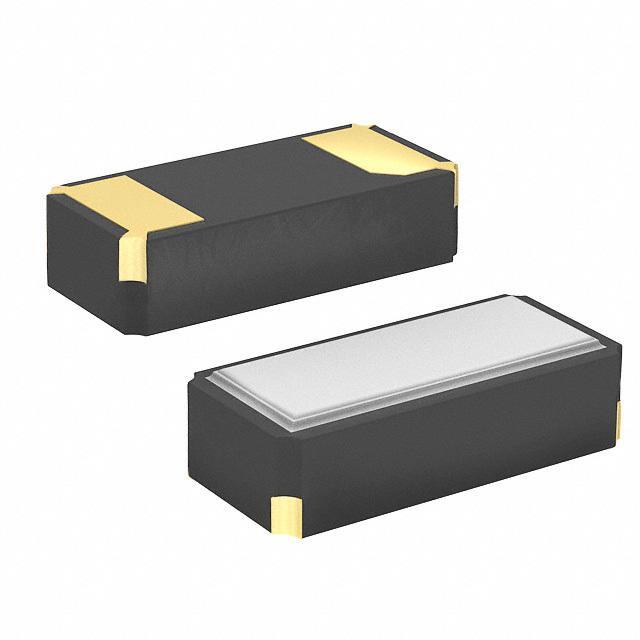

Same model may have multiple batches, images only for reference.
NX3215SA-32.768K-STD-MUA-8 NDK
Same model may have multiple batches, images only for reference.

NX3215SA-32.768K-STD-MUA-8

Part No NX3215SA-32.768K-STD-MUA-8
Manufacturer NDK
Catalog Crystals
Description Crystal 0.032768MHz ±20ppm (Tol) 12.5pF Flexural 70000Ohm Automotive 2-Pin SMD / CRYSTAL 32.7680KHZ 12.5PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Packaging Reel - TR
Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR 70 kOhm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Win Source Part Number 025875-NX3215SA-32.768K-STD-MUA-8
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Introduction Date June 09, 2009
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian NX3215SA-32.768K-STD-MUA-8 CAD Model

Description

The NDK America Inc. NX3215SA-32.768K-STD-MUA-8 is a high popularity kHz crystal oscillator manufactured by NDK America Inc.

  • Status: balanced
  • Estimated EOL Date: 2026
