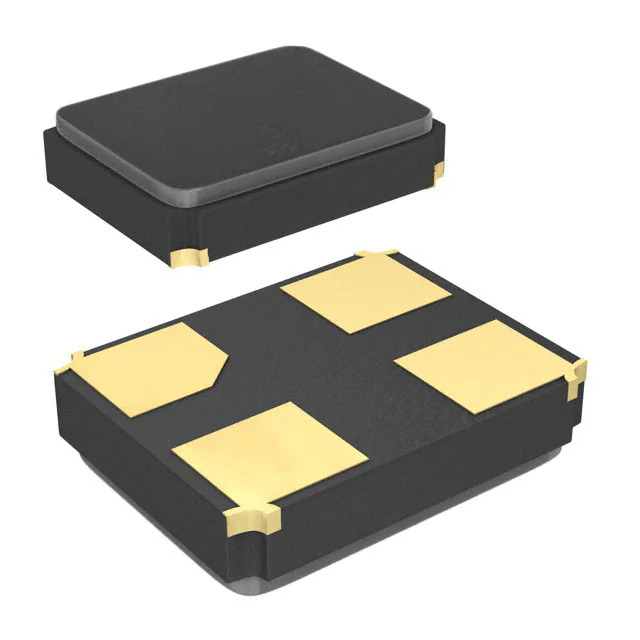

Same model may have multiple batches, images only for reference.
NX3225GA-20MHZ-STD-CRA-1 NDK
Same model may have multiple batches, images only for reference.

NX3225GA-20MHZ-STD-CRA-1

Part No NX3225GA-20MHZ-STD-CRA-1
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 20.0000MHZ 8PF SMD
Datasheet
NX3225GA-20MHZ-STD-CRA-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK America, Inc.
Series NX3225GA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 20 MHz
Frequency Stability ±150ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 150°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1366337-NX3225GA-20MHZ-STD-CRA-1
Ultra Librarian 3D Model Ultra Librarian NX3225GA-20MHZ-STD-CRA-1 CAD Model

Description

The NDK America, Inc. NX3225GA is a MHz crystal that operates at a frequency of 20 MHz manufactured by NDK America, Inc..

  • Frequency: 20 MHz
  • Frequency Stability: ±150ppm
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 8pF
  • Mode: Fundamental
  • Package: 4-SMD, no lead
  • Mounting Type: Surface Mount
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Automotive: AEC-Q200
