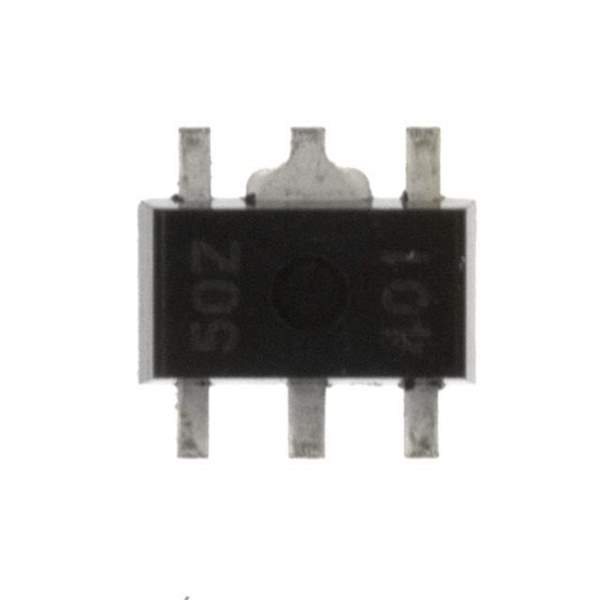

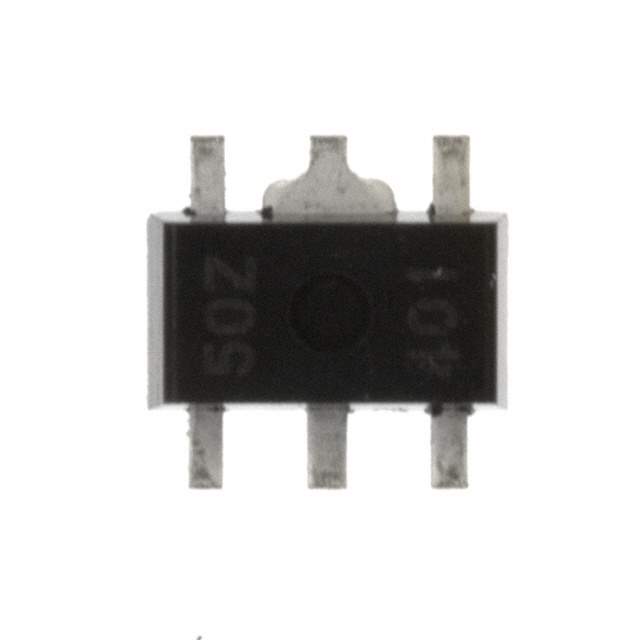

The NJM2884U1-15 is a low-dropout (LDO) voltage regulator manufactured by New Japan Radio (NJR). It is designed to provide a stable and regulated 1.5V output voltage for various electronic devices. This regulator is known for its low quiescent current, high accuracy, and low dropout voltage, making it suitable for battery-powered and portable applications. It also integrates overcurrent and over-temperature protection features.

Applications

• Portable Electronics: Used in smartphones, tablets, and other mobile devices to regulate power.
• Battery-Powered Devices: Ideal for devices like wireless sensors, wearables, and IoT devices to extend battery life.
• Microcontroller Power Supplies: Provides stable power to microcontrollers in embedded systems.
• Power Management Systems: Part of larger power management circuits in electronic devices.
• Consumer Electronics: Employed in various consumer products such as digital cameras and audio players.

Features

• Low Dropout Voltage: Maintains regulation with very small difference between input and output voltage.
• 1.5V Fixed Output Voltage: Provides a precise and stable 1.5V output.
• Low Quiescent Current: Minimizes power consumption when the regulator is in standby mode.
• Overcurrent Protection: Protects the regulator and connected devices from damage due to excessive current draw.
• Thermal Shutdown: Shuts down the regulator if the temperature exceeds a safe limit.
• Small Package Size: Compact form factor allows for use in space-constrained applications.

Benefits

• Extended Battery Life: Low quiescent current and low dropout voltage contribute to longer battery runtimes in portable devices.
• Improved System Reliability: Stable output voltage and protection features ensure reliable operation of connected devices.
• Reduced Heat Generation: High efficiency minimizes heat, improving overall system performance and reliability.
• Smaller Form Factor: Compact package allows for integration into small and densely populated circuit boards.
• Enhanced Protection: Overcurrent and thermal protection features prevent damage to the regulator and connected components.

Additional Details

The NJM2884U1-15 is typically available in a small surface-mount package, such as SOT-23 or similar. The input voltage range is generally between 1.7V and 6V. The output current capability is typically in the range of 100mA to 300mA. The dropout voltage is typically very low, allowing it to operate efficiently even when the input voltage is close to the output voltage. It incorporates internal compensation to ensure stability over a wide range of operating conditions. The NJM2884U1-15 is designed to be a drop-in replacement for other similar voltage regulators, making it easy to integrate into existing designs. Its combination of low power consumption, high accuracy, and robust protection features makes it an excellent choice for applications requiring a stable 1.5V supply.
