74LVC1G14GX4-Q100Z Nexperia USA Inc.

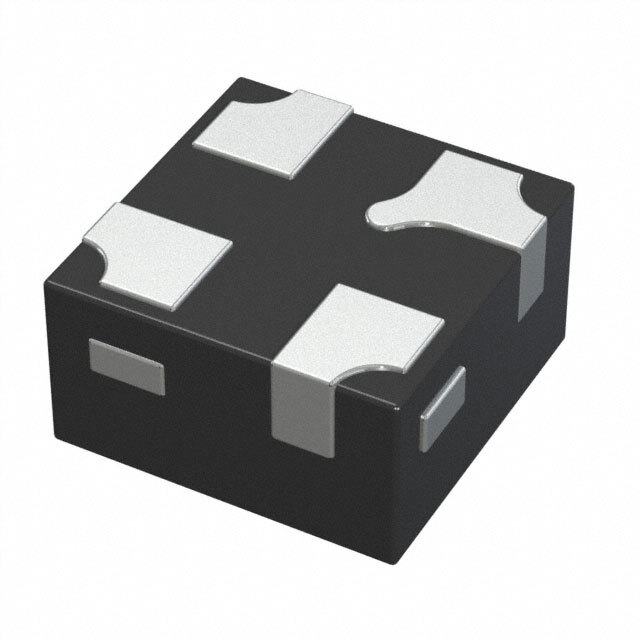

Same model may have multiple batches, images only for reference.

74LVC1G14GX4-Q100Z

Part No 74LVC1G14GX4-Q100Z
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description 74LVC1G14-Q100 - SINGLE SCHMITT
Datasheet
74LVC1G14GX4-Q100Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74LVC
Package Tape & Reel
Product Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 1.65V ~ 5.5V
Current - Quiescent (Max) 4 µA
Current - Output High, Low 32mA, 32mA
Input Logic Level - Low 0.46V ~ 1.58V
Input Logic Level - High 1.14V ~ 2.79V
Max Propagation Delay @ V, Max CL 6.5ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Supplier Device Package 4-X2SON (0.6x0.6)
Package / Case 4-XFDFN
Base Product Number 74LVC1G14
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371076-74LVC1G14GX4-Q100Z
Ultra Librarian 3D Model Ultra Librarian 74LVC1G14GX4-Q100Z CAD Model

Description

The 1371076-74LVC1G14GX4-Q100Z is an integrated circuit (IC) logic gate and inverter from Nexperia USA Inc. It belongs to the 74LVC series, designed for automotive applications and compliant with the AEC-Q100 standard.

  • Package: 4-XFDFN
  • Mounting Type: Surface Mount
  • Voltage Supply Range: 1.65V to 5.5V
  • Feature: Schmitt Trigger
  • Maximum Propagation Delay: 6.5ns @ 5V and 50pF load
  • Current Quiescent: 4 µA
  • Output Current: 32mA (High and Low)
