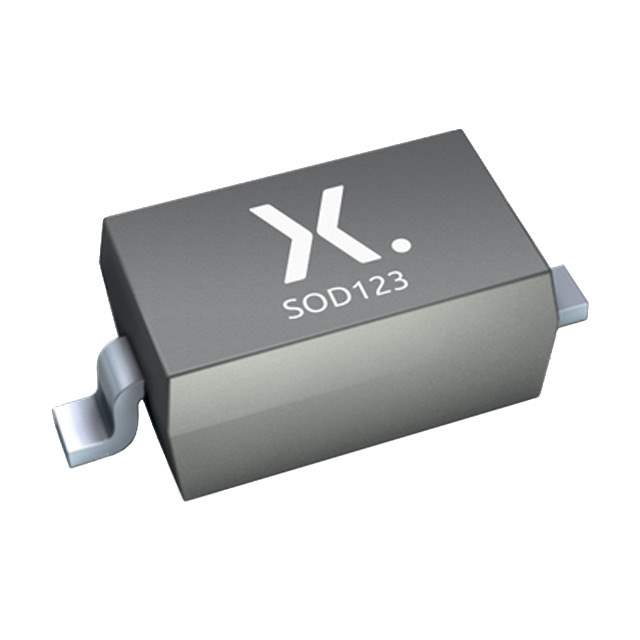

BAT46GWJ

Name: BAT46GWJ
Brand: Nexperia USA Inc.
SKU: 850876
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAT46GWJ
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 100V 250MA SOD123 / Diode 100 V 250mA Surface Mount SOD-123
Datasheet	BAT46GWJ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	100 V
Current - Average Rectified (Io)	250mA
Voltage - Forward (Vf) (Max) @ If	850 mV @ 250 mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5.9 ns
Current - Reverse Leakage @ Vr	9 µA @ 100 V
Capacitance @ Vr, F	39pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123
Supplier Device Package	SOD-123
Operating Temperature - Junction	150°C (Max)
Base Product Number	BAT46
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Win Source Part Number	850876-BAT46GWJ
Ultra Librarian 3D Model	Ultra Librarian BAT46GWJ CAD Model

Alternative Products

Description

The BAT46GWJ is a fast recovery diode designed for automotive applications.

Application: Automotive
Reverse Voltage: 100V (Max)
Average Rectified Current: 250mA
Forward Voltage: 850mV @ 250mA
Reverse Recovery Time: 5.9ns
Reverse Leakage Current: 9μA @ 100V
Capacitance: 39pF @ 0V, 1MHz
Junction Temperature: 150°C (Max)
Mounting: Surface Mount
Package: SOD-123
Packaging: Tape and Reel
Standard Package: 10,000 pcs
Manufacturer: Nexperia USA Inc.
Status: Active
