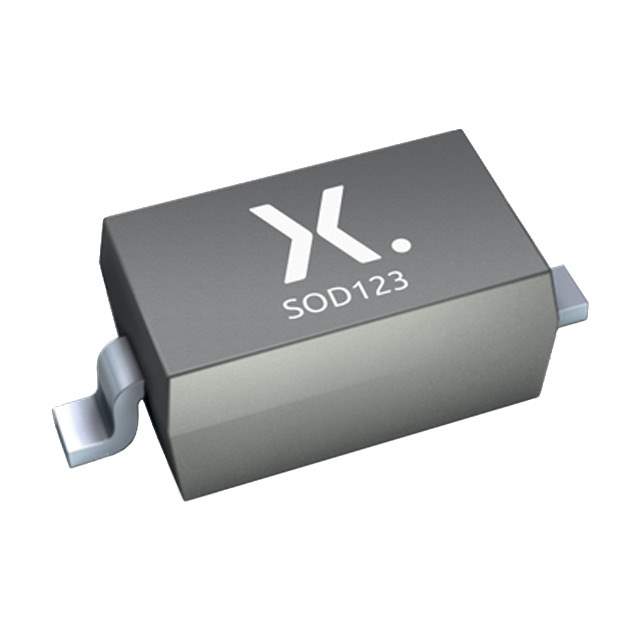

BAT46GWX Real Image
Same model may have multiple batches, images only for reference.

BAT46GWX

Part No BAT46GWX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 250MA SOD123 / Diode Schottky 100 V 250mA (DC) Surface Mount SOD-123
Datasheet
BAT46GWX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 850 mV @ 250 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 5.9 ns
Current - Reverse Leakage @ Vr 9 µA @ 100 V
Capacitance @ Vr, F 39pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction 150°C (Max)
Base Product Number BAT46
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-7325-1,1727-7325-2,934070363115,1727-7325-6
Standard Package 3,000
Win Source Part Number 1027870-BAT46GWX
Ultra Librarian 3D Model Ultra Librarian BAT46GWX CAD Model

Description

The BAT46GWX is a Schottky diode with a maximum DC reverse voltage of 100V manufactured by Nexperia USA Inc.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 250mA (DC)
  • Forward Voltage: 850mV @ 250mA
  • Reverse Recovery Time: 5.9ns
  • Package Size: SOD-123
  • Mounting: SMD (SMT) mounting
  • Series: automotive, AEC-Q101 series
  • Packaging: tape and reel packaging
  • Capacitance: 39pF @ 0V, 1MHz
  • Operating Temperature: up to 150°C (Max)
  • REACH: unaffected by REACH
  • ECCN: EAR99
