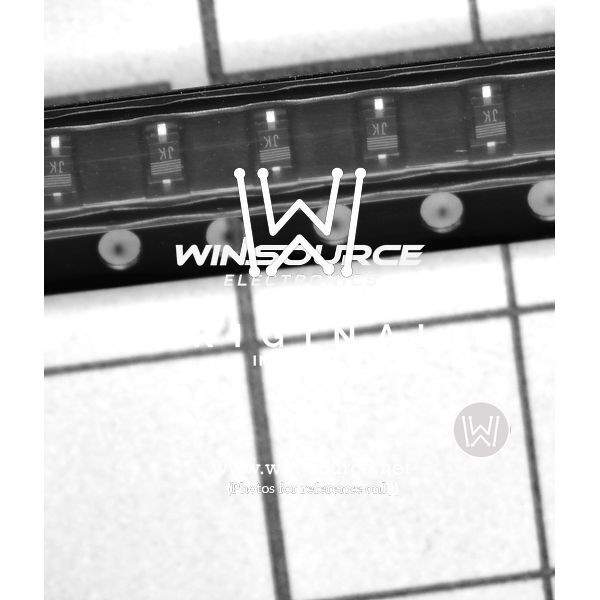

BAT46WJ,115 Nexperia USA Inc. BAT46WJ,115 label picture BAT46WJ,115 real image15182
Same model may have multiple batches, images only for reference.
BAT46WJ,115 Nexperia USA Inc. BAT46WJ,115 label picture BAT46WJ,115 real image15182
BAT46WJ,115 Nexperia USA Inc. BAT46WJ,115 label picture BAT46WJ,115 real image15182
Same model may have multiple batches, images only for reference.

BAT46WJ,115

Part No BAT46WJ,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description Schottky Diodes & Rectifiers Schottky barrier diode
Datasheet
BAT46WJ,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 850mV @ 250mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 5.9ns
Current - Reverse Leakage @ Vr 9μA @ 100V
Capacitance @ Vr, F 39pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-323F
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1022158-BAT46WJ,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAT46WJ,115 CAD Model

Description

The BAT46WJ,115 from Nexperia USA Inc. is a Schottky diode designed for various electronic circuit applications.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 250mA
  • Forward Voltage: 850mV @ 250mA
  • Reverse Recovery Time: 5.9ns
  • Current Reverse Leakage: 9μA
  • Capacitance: 39pF @ 0V, 1MHz
  • Maximum Junction Temperature: 150°C
  • Package: SOD-323F
  • Mounting: Surface Mount Technology
  • Product Status: Active
  • Supply and Demand Status: Sufficient
