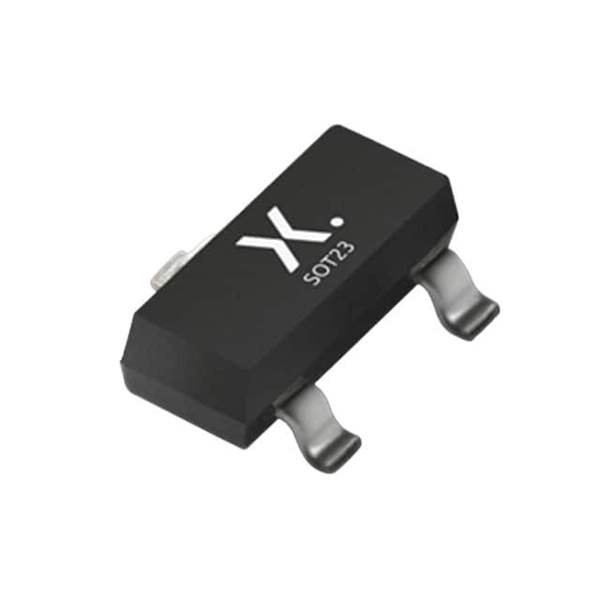

Part No BAV199,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description Small Signal Switching Diodes Low-leakage double diode
Datasheet
BAV199,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Diode Array 1 Pair Series Connection Standard 75 V 160mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package TO-236-3, SC-59, SOT-23-3
Case / Package TO-236AB
Family Name BAV199
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 934032640215, 568-1619-2-ND, 568-1619-2, 568-1619-1-ND, 1727-2909-1, 1727-2909-2, 568-1619-6, BAV199215, 1727-2909-6, BAV199 T/R, 568-1619-1, 568-1619-6-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912863-BAV199,215
Ultra Librarian 3D Model Ultra Librarian BAV199,215 CAD Model

Description

The Nexperia USA Inc. 912863-BAV199,215 is a diode array featuring 1 pair series connection standard 75 V 160mA (DC) surface mount TO-236-3, SC-59, SOT-23-3.

  • Manufacturer: Nexperia USA Inc.
  • Part Number: 912863-BAV199,215
  • Type: Diode Array
  • Configuration: 1 Pair Series Connection Standard
  • Voltage: 75 V
  • Current: 160mA (DC)
  • Mounting: Surface Mount
  • Package: TO-236-3, SC-59, SOT-23-3
  • Series: Automotive AEC-Q101
  • Application: Small Signal Applications (< 200mA (Io))
  • Popularity: High
  • Supply and Demand: Balanced
  • Quantity per Package: 3000
  • Estimated Production Lead Time: 26 weeks
  • REACH: Unaffected
  • Other Part Numbers: 934032640215, 568-1619-2-ND, 568-1619-2, 568-1619-1-ND, 1727-2909-1, 1727-2909-2, 568-1619-6, BAV199215, 1727-2909-6, BAV199 T/R, 568-1619-1, and 568-1619-6-ND
