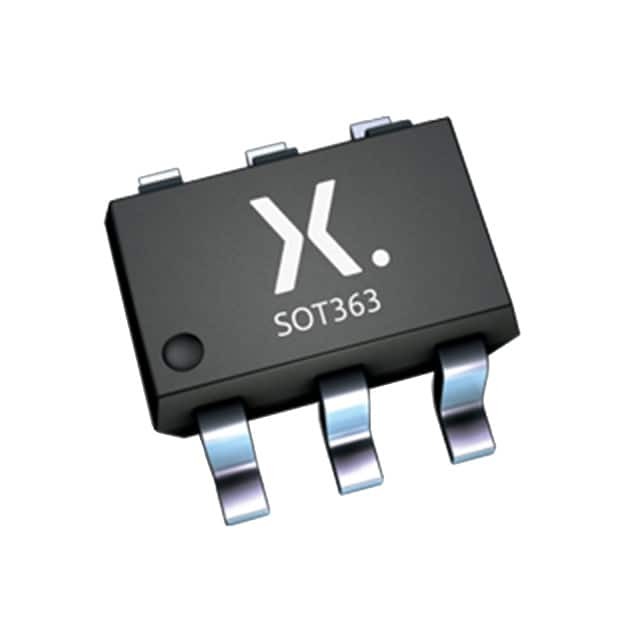

BAW56S,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAW56S,115

Part No BAW56S,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 90V 250MA 6TSSOP  /  Diode Array 2 Pair Common Anode Standard 90 V 250mA (DC) Surface Mount 6-TSSOP, SC-88, SOT-363
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Configuration 2 Pair Common Anode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 90 V
Current - Average Rectified (Io) (per Diode) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case 6-TSSOP, SC-88, SOT-363
Supplier Device Package 6-TSSOP
Base Product Number BAW56S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-4833-6,568-6033-6-ND,1727-4833-2,1727-4833-1,568-6033-1-ND,568-6033-2-ND,BAW56S T/R-ND,568-6033-1,568-6033-2,BAW56S T/R,568-6033-6,BAW56S,115-ND,934045730115
Standard Package 3,000
Win Source Part Number 1048312-BAW56S,115
Ultra Librarian 3D Model Ultra Librarian BAW56S,115 CAD Model

Description

The 1048312-BAW56S,115 is a standard diode with a voltage rating of 90 V and a forward voltage of 1.25 V @ 150 mA.

  • Reverse recovery time: 4 ns
  • Current rating: 250mA (DC) per diode
  • Package: 6-TSSOP, SC-88, SOT-363
  • Mounting: SMD (SMT) technology
  • Application: automotive applications
  • Standards: AEC-Q101 standards
  • Operating temperature range: -40°C to 125°C (TA)
  • Packaging: tape and reel packaging
  • ECCN: EAR99
  • REACH status: unaffected
