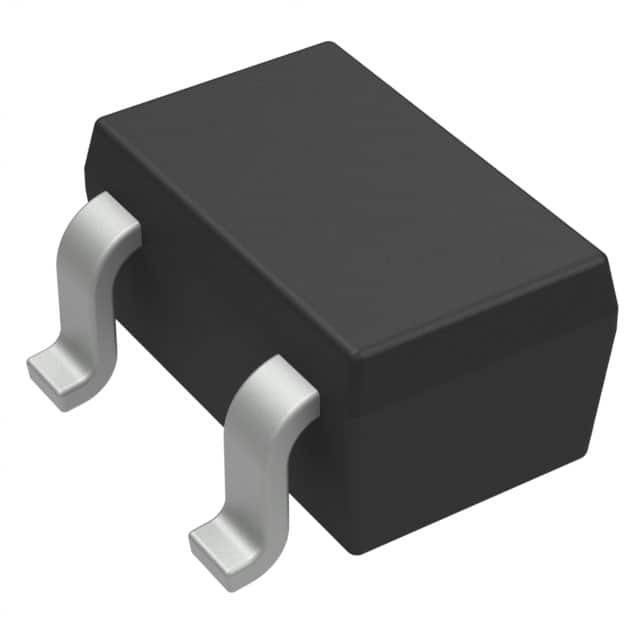

Same model may have multiple batches, images only for reference.

BC856AW,115

Get a Quote

Part No	BC856AW,115
Manufacturer	Nexperia USA Inc.
Catalog	RF Transistors (BJT)
Description	TRANS PNP 65V 0.1A SOT323 / Bipolar (BJT) Transistor PNP 65 V 100 mA 100MHz 200 mW Surface Mount SOT-323
Datasheet	BC856AW,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Transistor Type	PNP
Current - Collector (Ic) (Max)	100 mA
Voltage - Collector Emitter Breakdown (Max)	65 V
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	125 @ 2mA, 5V
Power - Max	200 mW
Frequency - Transition	100MHz
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Base Product Number	BC856
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0075
Other Names	BC856AW,115-ND,1727-6195-2,1727-6195-1,568-8005-1-ND,568-8005-2-ND,568-8005-6-ND,568-8005-2,2156-BC856AW,115-1727,934021810115,BC856AW T/R-ND,568-8005-6,1727-6195-6,BC856AW T/R,568-8005-1
Standard Package	3,000
Win Source Part Number	1048424-BC856AW,115
Ultra Librarian 3D Model	Ultra Librarian BC856AW,115 CAD Model

Alternative Products

Description

The 1048424-BC856AW,115 is a PNP bipolar transistor with a voltage rating of 65 V and a current rating of 100 mA.

Vce Saturation: 600mV @ 5mA, 100mA
DC Current Gain (hFE): 125 @ 2mA, 5V
Package: SC-70, SOT-323
Mounting: SMD (SMT) technology
Application: Automotive applications
Standards: AEC-Q101 standards
Operating Temperature Range: -40°C to 125°C (TA)
Packaging: Tape and reel packaging
ECCN: EAR99
REACH Status: REACH unaffected
