The BUK761R7-40E,118 is an N-Channel MOSFET transistor that can handle a continuous drain current of 120A @ a maximum of 40V.

• On-Resistance: It has a maximum on-resistance of 1.6mOhm @ 25A and 10V.
• Series: Automotive, AEC-Q101, TrenchMOS™ series

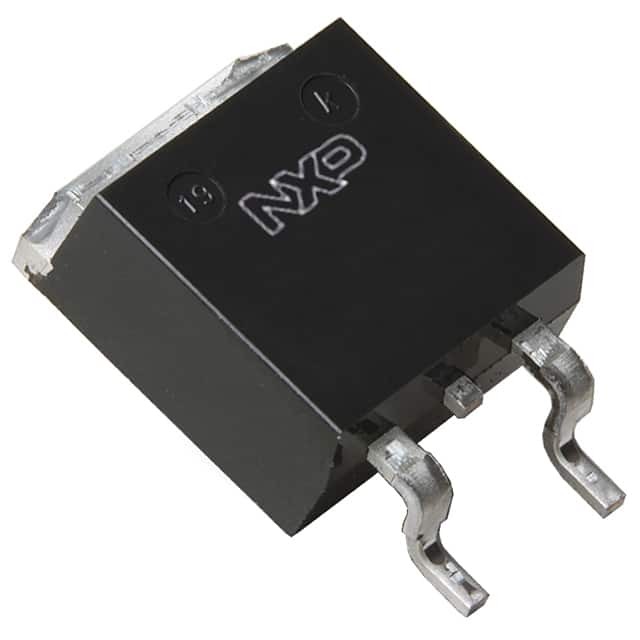

• Package: TO-263-3, D²PAK (2 Leads + Tab), TO-263AB package.
• Gate Charge: 118nC @ 10V
• Input Capacitance: 9700pF @ 25V.
• Gate-Source Voltage: maximum gate-source voltage of ±20V
• Operating Temperature: -55°C to 175°C (TJ).
• Applications: Suitable for use in various applications such as power supplies, motor control, and lighting.
