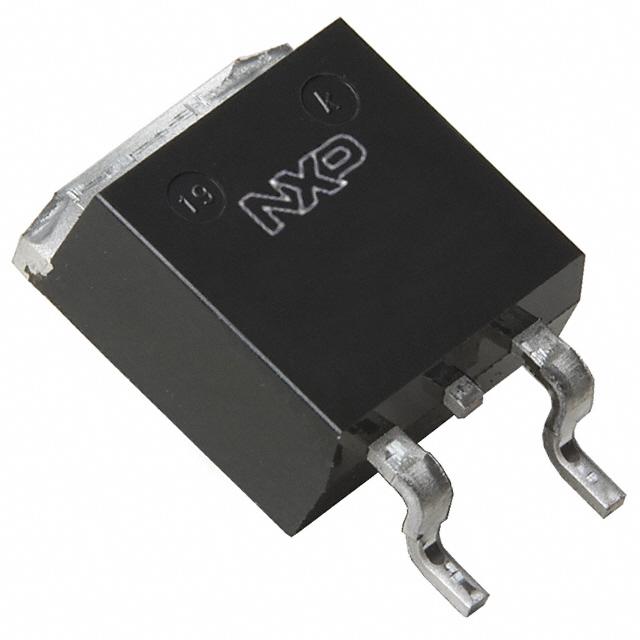

The Nexperia USA Inc. BUK9640-100A,118 is an N-Channel MOSFET with a Drain-Source Breakdown Voltage of 100V and a Continuous Drain Current at 25°C of 39A (Tc).

• Drain-Source Breakdown Voltage: 100V
• Continuous Drain Current @ 25°C: 39A (Tc)
• Power Dissipation (Max): 158W (Tc)
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Package: D2PAK
• Temperature Range: -55°C to 175°C (TJ)
• Maximum Rds On @ Id,Vgs: 39 mOhm @ 25A, 10V
• Maximum Gate-Source Voltage: ±15V
• Popularity: popular
• Supply and Demand Status: sufficient
