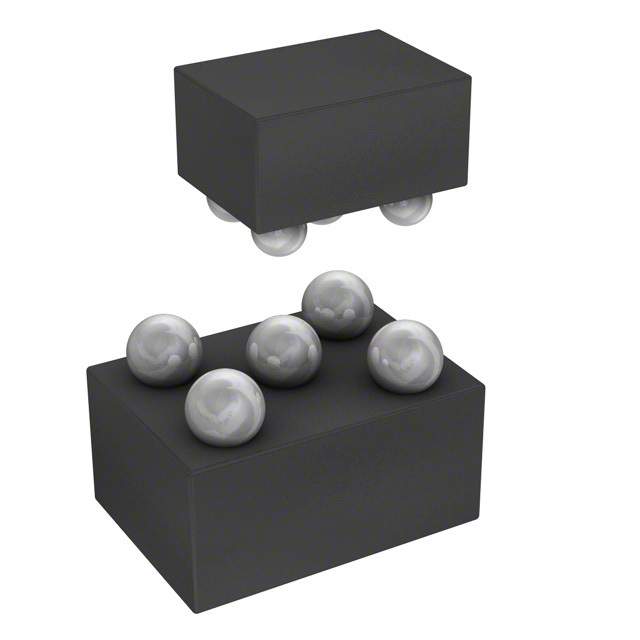

Same model may have multiple batches, images only for reference.
IP4049CX5/LF,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4049CX5/LF,135

Part No IP4049CX5/LF,135
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 68 OHM/110PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 2
Resistance - Channel (Ohms) 68
Values R = 68 Ohms, C = 110pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Audio
Mounting SMD (SMT)
Dimension 0.050" L x 0.038" W (1.28mm x 0.96mm)
Height 0.026" (0.65mm)
Win Source Part Number 1045635-IP4049CX5/LF,135
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4049CX5/LF,135 CAD Model

Description

The Nexperia USA Inc. IP4049CX5/LF,135 is a low pass filter with 2 channels and a resistance of 68 ohms.

  • Filter Type: Low Pass
  • Channels: 2
  • Resistance: 68 ohms
  • Mounting: SMD (SMT)
  • Dimension: 0.050" L x 0.038" W (1.28mm x 0.96mm)
  • Features: ESD Protection
  • Filter Order: 2nd Order
  • Application: Audio
  • Status: Obsolete (EOL)
