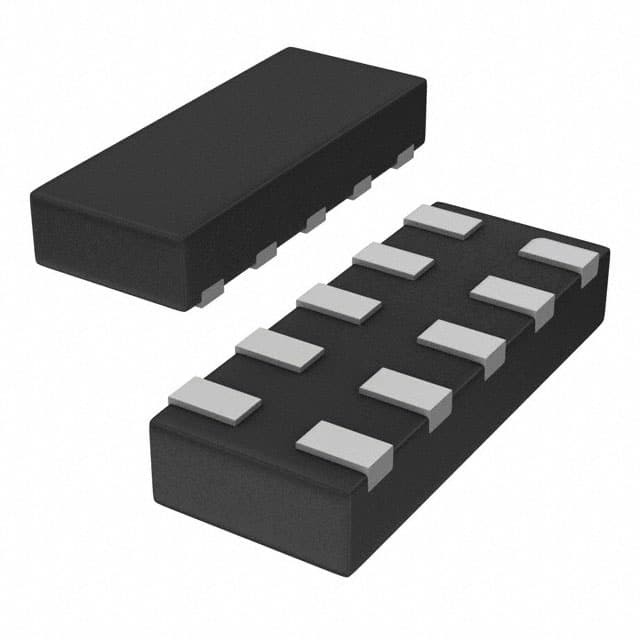

IP4283CZ10-TBR,115

Name: IP4283CZ10-TBR,115
Brand: Nexperia USA Inc.
SKU: 1011771
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IP4283CZ10-TBR,115
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 5.5VWM 9.5VC DFN2510A / 9.5V (Typ) Clamp 3.8A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510A-10
Datasheet	IP4283CZ10-TBR,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	5.5V
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	9.5V (Typ)
Current - Peak Pulse (10/1000µs)	3.8A (8/20µs)
Power Line Protection	Yes
Applications	HDMI
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting	SMD (SMT)
Package / Case	10-XFDFN
Supplier Device Package	DFN2510A-10
Base Product Number	IP4283
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	934065613115,568-10487-2-ND,568-10487-1-ND,568-10487-6,NEXNEXIP4283CZ10-TBR,115,IP4283CZ10-TBR,115-ND,568-10487-6-ND,568-10487-2,IP4283CZ10-TBR,568-10487-1,1727-1272-6,1727-1272-1,1727-1272-2,2156-IP4283CZ10-TBR,115-NEX
Standard Package	5,000
Win Source Part Number	1011771-IP4283CZ10-TBR,115
Ultra Librarian 3D Model	Ultra Librarian IP4283CZ10-TBR,115 CAD Model

Alternative Products

Description

The IP4283CZ10-TBR,115 is a steering (rail to rail) type TVS diode designed for HDMI applications.

Type: Steering (Rail to Rail)
Application: HDMI
Package: Tape and Reel
Standard Package: 5,000
Channel: Unidirectional
Voltage Reverse Standoff: 5.5V
Breakdown Voltage: 6V
Voltage Clamping @ Ipp: 9.5V (typical)
Current Peak Pulse: 3.8A (8/20μs)
Mounting Type: SMD (SMT)
Application: Power line protection in TVS - Diodes
