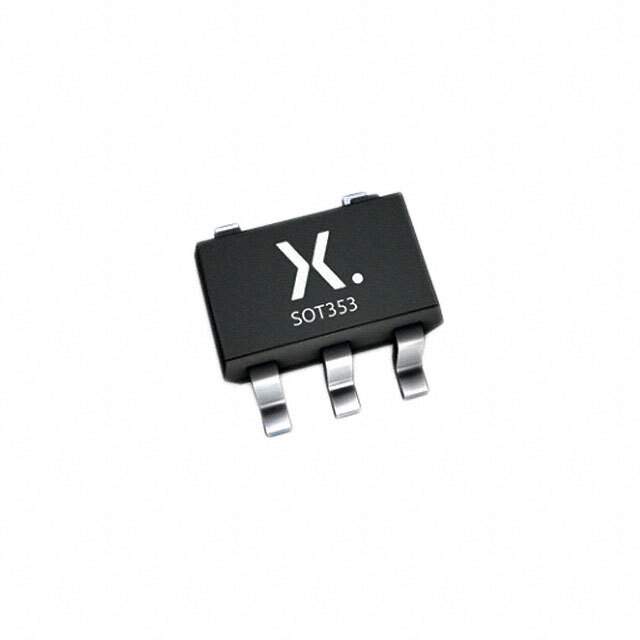

74HC1G14GW-Q100H Real Image
Same model may have multiple batches, images only for reference.

74HC1G14GW-Q100H

Part No 74HC1G14GW-Q100H
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERT SCHMITT 1CH 1IN 5TSSOP  /  Inverter IC 1 Channel Schmitt Trigger 5-TSSOP
Datasheet
74HC1G14GW-Q100H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 74HC
Package Tape & Reel
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 20 µA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.3V ~ 1.2V
Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 32ns @ 6V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Supplier Device Package 5-TSSOP
Package / Case 5-TSSOP, SC-70-5, SOT-353
Base Product Number 74HC1G14
Other Names 1727-8393-2,74HC1G14GW-Q100H,1727-8393-1,935299224125,1727-8393-6
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1258193-74HC1G14GW-Q100H
Ultra Librarian 3D Model Ultra Librarian 74HC1G14GW-Q100H CAD Model

Description

The 74HC1G14GW-Q100H is an inverter logic type gate and inverter integrated circuit (IC) from Nexperia USA Inc.

  • Feature: Schmitt trigger
  • Inputs: 1
  • Package/Case: 5-TSSOP, SC-70-5, SOT-353
  • Voltage Supply: 2V to 6V
  • Output High Current: 2.6mA
  • Output Low Current: 2.6mA
  • Quiescent Current: 20 μA (maximum)
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
