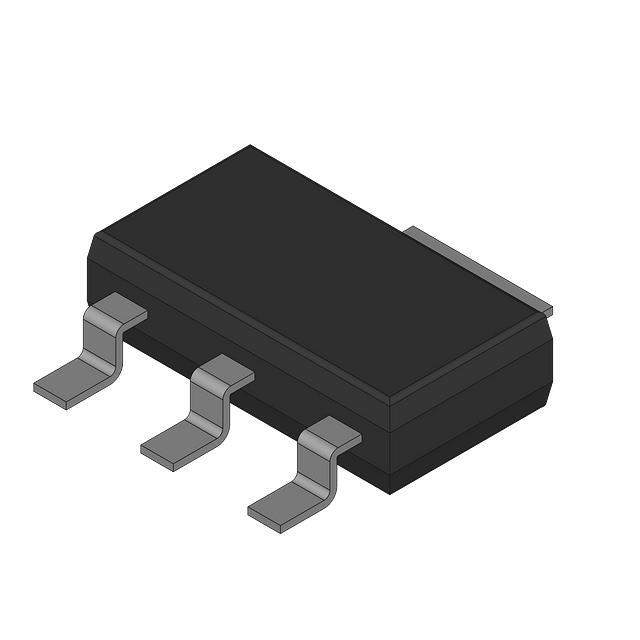

BCP56TX

Name: BCP56TX
Brand: Nexperia USA Inc.
SKU: 1325619
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BCP56TX
Manufacturer	Nexperia USA Inc.
Catalog	Transistors (BJT) - Single
Description	TRANS NPN 80V 1A SOT223 / Bipolar (BJT) Transistor NPN 80 V 1 A 100MHz 1.8 W Surface Mount SOT-223
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Manufacturer	Nexperia USA Inc.
Packaging	Bulk
Transistor Type	NPN
Current - Collector (Ic) (Max)	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Power - Max	1.8 W
Frequency - Transition	100MHz
Temperature Range - Operating	150°C (TJ)
Mounting	Surface Mount
Case / Package	TO-261-4, TO-261AA
Supplier Device Package	SOT-223
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	Vendor Undefined
Other Part Number	2156-BCP56TX-1727
Standard Package	1
Win Source Part Number	1325619-BCP56TX
Ultra Librarian 3D Model	Ultra Librarian BCP56TX CAD Model

Alternative Products

Description

The Nexperia USA Inc. 1325619-BCP56TX is an NPN bipolar transistor with a power rating of 1.8W and a maximum voltage breakdown of 80V.

Power Rating: 1.8W
Maximum Voltage Breakdown: 80V
Maximum Collector Current: 1A
Cutoff Current: 100nA
DC Current Gain (hFE): 63 @ 150mA and 2V
Frequency Transition: 100MHz
Package: SOT-223
Maximum Vce Saturation: 500mV @ 50mA, 500mA
Operating Temperature Range: Between -55°C to 150°C
