The Nexperia USA Inc. BUK6D210-60EX is an N-channel MOSFET designed for use in discrete semiconductor products.

• Drain to Source Voltage: 60 V
• Continuous Drain Current: 2.1A @ 25°C, with a maximum of 5.7A @ Tc
• Rds On (Max) @ Id, Vgs: 210mOhm @ 2.1A, 10V
• Gate Charge (Qg) (Max) @ Vgs: 3.8 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds: 110 pF @ 30 V
• Temperature Range: -55°C to 175°C (TJ)

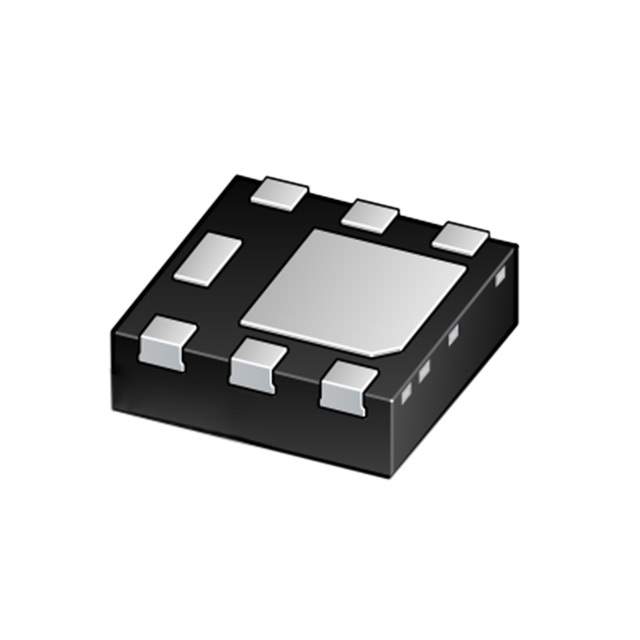

• Package: DFN2020MD-6
• Power Dissipation (Max): 2W, 15W (Tc)
• Vgs (Max): ±20V
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• ROHS3 Compliant: Yes
