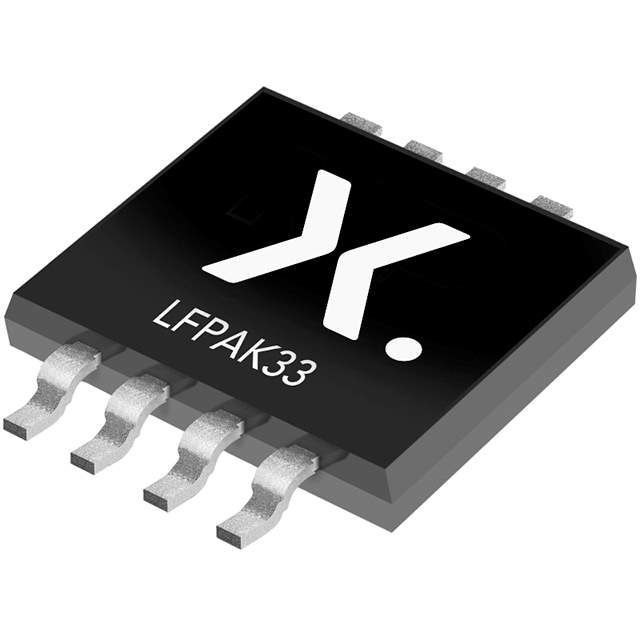

BUK9M120-100EX

Name: BUK9M120-100EX
Brand: Nexperia USA Inc.
SKU: 1324327
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	BUK9M120-100EX
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 100V 11.5A LFPAK33 / N-Channel 100 V 11.5A (Tc) 44W (Tc) Surface Mount LFPAK33
Datasheet	BUK9M120-100EX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	119mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	2.05V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	8.8 nC @ 5 V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	882 pF @ 25 V
Power Dissipation (Max)	44W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	Surface Mount
Supplier Device Package	LFPAK33
Case / Package	SOT-1210, 8-LFPAK33 (5-Lead)
Base Product Number	BUK9M120
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	568-13014-1-ND,BUK9M120-100E,115,568-13014-2-ND,568-13014-1,1727-2570-2,568-13014-2,568-13014-6-ND,934070072115,1727-2570-1,1727-2570-6,568-13014-6,BUK9M120-100EX-ND
Standard Package	1,500
Win Source Part Number	1324327-BUK9M120-100EX
Ultra Librarian 3D Model	Ultra Librarian BUK9M120-100EX CAD Model

Alternative Products

Description

The BUK9M120-100EX is a N-Channel MOSFET transistor manufactured by Nexperia USA Inc.

Drain to Source Voltage (Vdss): 100 V
Continuous Drain Current (Id): 11.5A (Tc) @ 25°C
Rds On (Max) @ Id, Vgs: 119mOhm @ 5A, 10V
Gate Charge (Qg) (Max) @ Vgs: 8.8 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds: 882 pF @ 25 V
Component: SMT
Package: LFPAK33
Operating Temperature Range: -55°C to 175°C (TJ)
