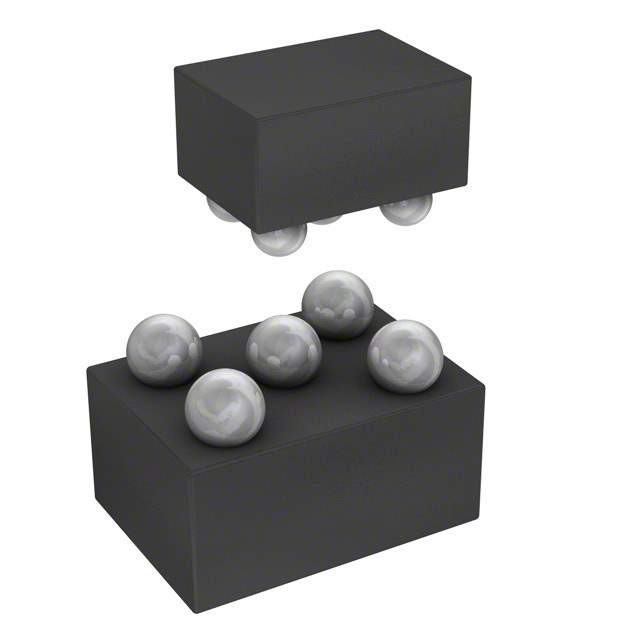

PCMF1USB3BA/CZ

Name: PCMF1USB3BA/CZ
Brand: Nexperia USA Inc.
SKU: 1328200
Availability: InStock
Rating: 4.93 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PCMF1USB3BA/CZ
Manufacturer	Nexperia USA Inc.
Catalog	Common Mode Chokes
Description	CMC 2LN SMD ESD / 2 Line Common Mode Choke Surface Mount DCR 2.6Ohm (Typ)
Datasheet	PCMF1USB3BA/CZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Filter Type	Signal Line
Number of Lines	2
DC Resistance (DCR) (Max)	2.6Ohm (Typ)
Temperature Range - Operating	-40°C ~ 125°C
Features	ESD
Mounting	Surface Mount
Size / Dimension	0.046" L x 0.030" W (1.17mm x 0.77mm)
Height (Max)	0.025" (0.64mm)
Base Product Number	PCMF1USB3
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Part Number	1727-8697-6,1727-8697-2,934660285087,1727-8697-1
Standard Package	4,500
Win Source Part Number	1328200-PCMF1USB3BA/CZ
Ultra Librarian 3D Model	Ultra Librarian PCMF1USB3BA/CZ CAD Model

Alternative Products

Description

The Nexperia USA Inc. PCMF1USB3BA/CZ is a surface mount common mode choke filter for signal lines.

Manufacturer: Nexperia USA Inc.
Product Name: PCMF1USB3BA/CZ
Mounting Type: Surface Mount
Type: Common Mode Choke Filter
Function: Signal Lines
Size: 0.046” L x 0.030” W (1.17mm x 0.77mm)
Height: 0.025” (0.64mm)
Lines: Two
DC Resistance: 2.6Ohm (Typ)
Protection: ESD Protected
Temperature Range: -40°C ~ 125°C
ROHS3: Compliant
REACH: Unaffected
Packaging: Reel
Units per Package: 4,500
