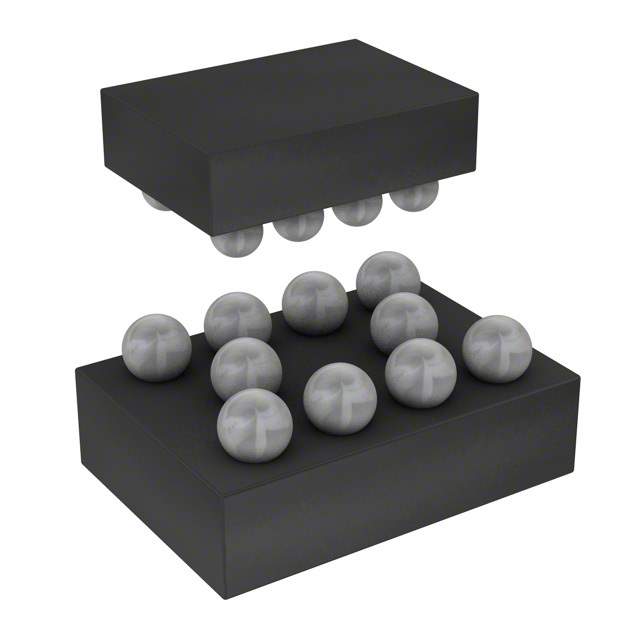

PCMF2HDMI2SZ

Name: PCMF2HDMI2SZ
Brand: Nexperia USA Inc.
SKU: 1328198
Availability: InStock
Rating: 4.93 (49 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PCMF2HDMI2SZ
Manufacturer	Nexperia USA Inc.
Catalog	Common Mode Chokes
Description	CMC 4LN SMD ESD / 4 Line Common Mode Choke Surface Mount DCR 3Ohm (Typ)
Datasheet	PCMF2HDMI2SZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Common Mode Chokes
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Filter Type	Signal Line
Number of Lines	4
DC Resistance (DCR) (Max)	3Ohm (Typ)
Temperature Range - Operating	-40°C ~ 85°C
Features	ESD
Mounting	Surface Mount
Size / Dimension	0.062" L x 0.046" W (1.57mm x 1.17mm)
Height (Max)	0.024" (0.60mm)
Case / Package	10-UFBGA, WLCSP
Base Product Number	PCMF2HDMI2
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Part Number	568-12939-6-ND,568-12939-6,568-12939-2-ND,1727-2506-1,568-12939-1-ND,1727-2506-2,934070093087,1727-2506-6,568-12939-1,568-12939-2
Standard Package	4,500
Win Source Part Number	1328198-PCMF2HDMI2SZ
Ultra Librarian 3D Model	Ultra Librarian PCMF2HDMI2SZ CAD Model

Alternative Products

Description

The Nexperia USA Inc. PCMF2HDMI2SZ is a surface mount common mode choke designed for use in electronic circuits.

Manufacturer: Nexperia USA Inc.
Product Name: PCMF2HDMI2SZ
Mounting Type: Surface Mount
Type: Common Mode Choke
Protection: ESD protection
Size: 0.062" L x 0.046" W
Height: 0.024"
Lines: 4
DC Resistance: 3 Ohm
Package: 10-UFBGA, WLCSP
Temperature Range: -40°C to 85°C
