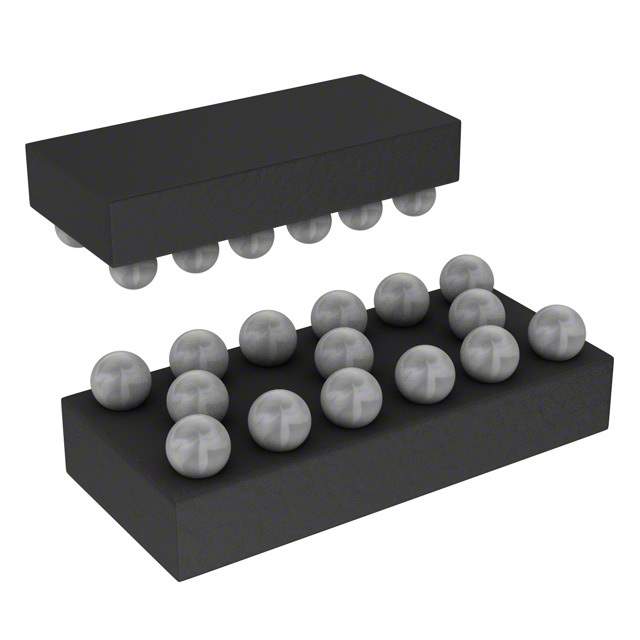

PESD3USB30Z Real Image
Same model may have multiple batches, images only for reference.

PESD3USB30Z

Part No PESD3USB30Z
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 15WLCSP / Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 15-WLCSP (2.37x1.17)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Unidirectional Channels 6
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Current - Peak Pulse (10/1000µs) 8A (8/20µs)
Power Line Protection No
Applications HDMI
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 15-UFBGA, WLCSP
Supplier Device Package 15-WLCSP (2.37x1.17)
Base Product Number PESD3USB30
Standard Package 4,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1346225-PESD3USB30Z
Ultra Librarian 3D Model Ultra Librarian PESD3USB30Z CAD Model

Description

The PESD3USB30Z is a Zener type TVS diode from Nexperia USA Inc.

  • Application: HDMI
  • Channel: Unidirectional, 6
  • Voltage - Reverse Standoff (Typ): 5.5V (Max)
  • Voltage Breakdown: 6V
  • Power Line Protection: No
  • Current - Peak Pulse (10/1000µs): 8A (8/20μs)
  • Mounting Type: Surface Mount
  • MSL Level: 1
  • REACH: Unaffected
  • HTSUS: 8541.10.0080
  • Voltage - Clamping (Max) @ Ipp: -
