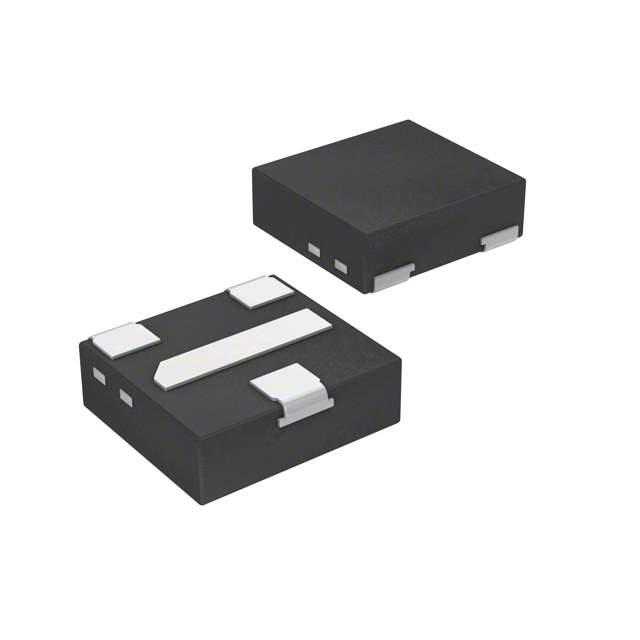

PMXB360ENEAZ

Name: PMXB360ENEAZ
Brand: Nexperia USA Inc.
SKU: 1325293
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMXB360ENEAZ
Manufacturer	Nexperia USA Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 80V 1.1A DFN1010D-3 / N-Channel 80 V 1.1A (Ta) 400mW (Ta), 6.25W (Tc) Surface Mount DFN1010D-3
Datasheet	PMXB360ENEAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80 V
Current - Continuous Drain (Id) @ 25°C	1.1A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	450mOhm @ 1.1A, 10V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.5 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	130 pF @ 40 V
Power Dissipation (Max)	400mW, 6.25W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	Surface Mount
Supplier Device Package	DFN1010D-3
Case / Package	3-XDFN Exposed Pad
Base Product Number	PMXB360
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Part Number	PMXB360ENEA,PMXB360ENEAZINACTIVE,PMXB360ENEAZ-ND,568-10945-1,568-10945-1-ND,568-10945-2,568-10945-2-ND,1727-1474-6,934067475147,568-10945-6,568-10945-6-ND,1727-1474-1,1727-1474-2
Standard Package	5,000
Win Source Part Number	1325293-PMXB360ENEAZ
Ultra Librarian 3D Model	Ultra Librarian PMXB360ENEAZ CAD Model

Alternative Products

Description

The Nexperia USA Inc. transistor with the Win Source Part Number 1325293-PMXB360ENEAZ is a surface-mount MOSFET (Metal Oxide) N-Channel transistor that falls under the category of discrete semiconductor products.

Drain to Source Voltage (Vdss): 80 V
Current - Continuous Drain (Id) @ 25°C: 1.1A
Power Dissipation (Max): 400mW, 6.25W (Tc)
Temperature Range - Operating: -55°C ~ 150°C (TJ)
