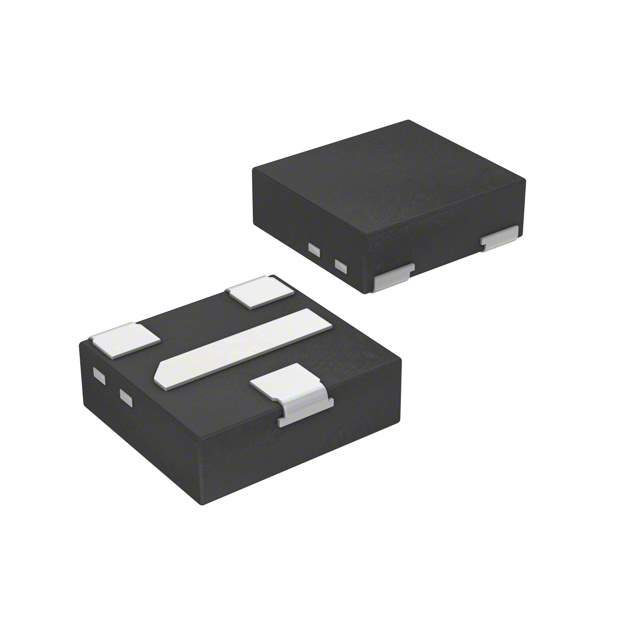

The Nexperia USA Inc. PMXB40UNEZ is an N-channel MOSFET transistor.

• Mounting: Surface Mount
• Applications: discrete semiconductor products, particularly in transistors - FETs, MOSFETs - single category
• Drain to Source Voltage (Vdss): 12 V
• Current - Continuous Drain (Id): 3.2A @ 25°C
• Rds On (Max): 45mOhm @ 3.2A, 4.5V
• Vgs(th) (Max): 900mV @ 250μA
• Power Dissipation (Max): 400mW, 8.33W (Tc)
• Gate Charge (Qg) (Max) @ Vgs: 11.6 nC @ 4.5 V
• Package / Case: DFN1010D-3
• ROHS3 Compliant: Yes
• Suitable for: use in various applications, including power management and switching.
