Same model may have multiple batches, images only for reference.

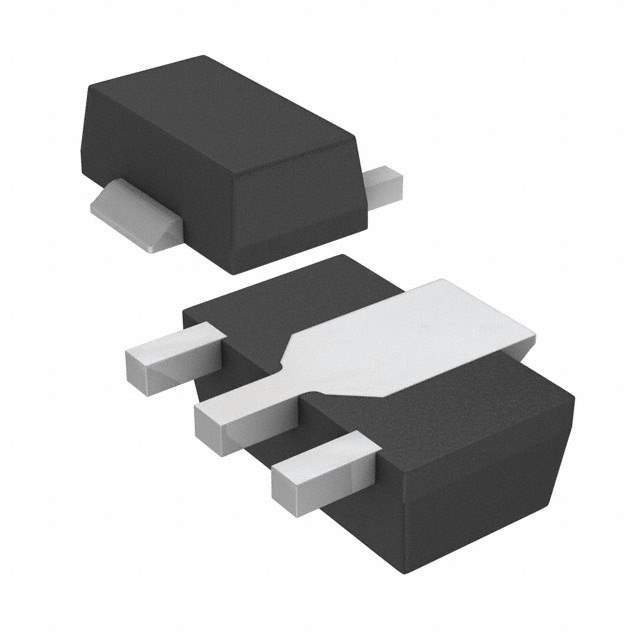

PBSS5360XF Real Image
Same model may have multiple batches, images only for reference.

PBSS5360XF

Part No PBSS5360XF
Manufacturer Nexperia USA Inc.
Catalog RF Transistors (BJT)
Description TRANS PNP 60V 3A SOT89 / Bipolar (BJT) Transistor PNP 60 V 3 A 65MHz 1.35 W Surface Mount SOT-89
Datasheet
PBSS5360XF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Transistor Type PNP
Current - Collector (Ic) (Max) 3 A
Voltage - Collector Emitter Breakdown (Max) 60 V
Vce Saturation (Max) @ Ib, Ic 550mV @ 300mA, 3A
Current - Collector Cutoff (Max) 100nA
DC Current Gain (hFE) (Min) @ Ic, Vce 150 @ 50mA, 5V
Power - Max 1.35 W
Frequency - Transition 65MHz
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting SMD (SMT)
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number PBSS5360
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
Other Names 1727-7489-2,1727-7489-1,934660029135,PBSS5360XF-ND,1727-7489-6,2156-PBSS5360XF-NEX,NEXNEXPBSS5360XF
Standard Package 4,000
Win Source Part Number 1083958-PBSS5360XF
Ultra Librarian 3D Model Ultra Librarian PBSS5360XF CAD Model

Description

The Nexperia USA Inc. PBSS5360XF is a PNP transistor that is designed for use in discrete semiconductor products.

  • Automotive: Yes, AEC-Q101 Compliant
  • Power - Max: 1.35W
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Voltage - Max: 60V
  • Current - Max: 3A
  • Alternative Part: 1727-7489-2, 1727-7489-1, 934660029135, PBSS5360XF-ND, 1727-7489-6, 2156-PBSS5360XF-NEX, and NEXNEXPBSS5360XF
