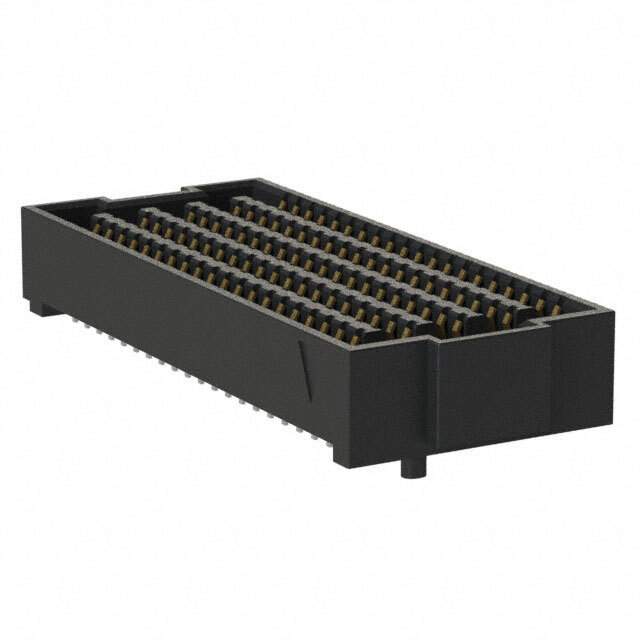

SEAF-20-05.0-S-10-2-A

Name: SEAF-20-05.0-S-10-2-A
Brand: Samtec Inc.
SKU: 1293541
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-05.0-S-10-2-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-05.0-S-10-2-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tray
Product Status	Obsolete
Connector Type	High Density Array, Female
Number of Positions	200
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-20
Other Names	SAM8001
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293541-SEAF-20-05.0-S-10-2-A
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-05.0-S-10-2-A CAD Model

Alternative Products

Description

The SEARAY™ SEAF series female high-density array connector from Samtec Inc. is a board-to-board connector with 200 positions and a pitch of 0.050" (1.27mm).

Positions: 200
Pitch: 0.050" (1.27mm)
Insulation Material: Black
Height Above Board: 0.199" (5.05mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Temperature Range: -55°C ~ 125°C
Mounting Type: Surface mount
Packaging: Tray
ECCN: EAR99 compliance
