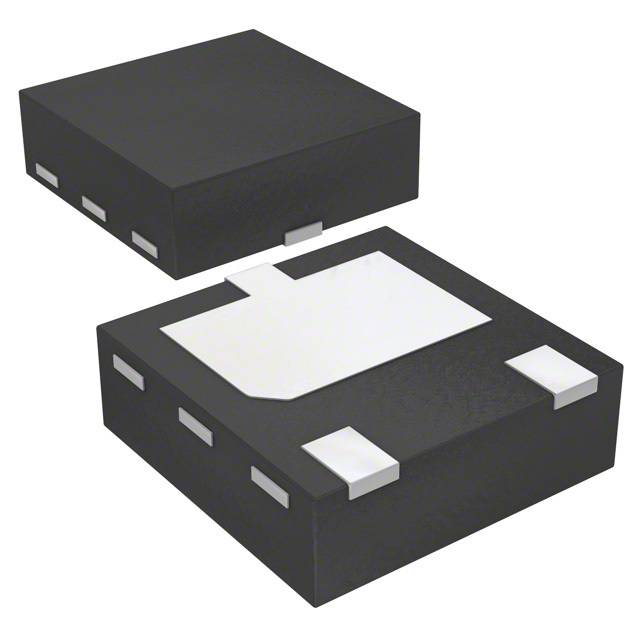

PBSS5580PA,115

Name: PBSS5580PA,115
Brand: Nexperia USA Inc.
SKU: 502949
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PBSS5580PA,115
Manufacturer	Nexperia USA Inc.
Catalog	Transistors (BJT) - Single
Description	TRANS PNP 80V 4A SOT1061
Datasheet	PBSS5580PA,115 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Status	Active
Transistor Polarity	PNP
Maximum Current Collector	4A
VCEO Maximum Collector-Emitter Breakdown Voltage	80V
Max Vce (sat)	420mV @ 200mA, 4A
Collector Cut-off Current(Max)	100nA
Typical Gain (hFE) (Min)	140 @ 2A, 2V
Maximum Power Dissipation	2.1W
Frequency - Transition	110MHz
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	3-HUSON (2x2)
Win Source Part Number	1086534-PBSS5580PA,115
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian PBSS5580PA,115 CAD Model

Alternative Products

Description

The Nexperia USA Inc. PBSS5580PA,115 is a PNP bipolar transistor manufactured by Nexperia USA Inc.

Manufacturer: Nexperia USA Inc.
Product Name: PBSS5580PA,115
Maximum Current: 4A
Maximum Collector-Emitter Breakdown Voltage: 80V
Saturation Voltage: 420mV @ 200mA
Package: 3-HUSON
Operating Temperature Range: -40°C to 150°C
Applications: Widely used in various electronic devices such as power supplies, motor control circuits, and other high-speed switching applications.
