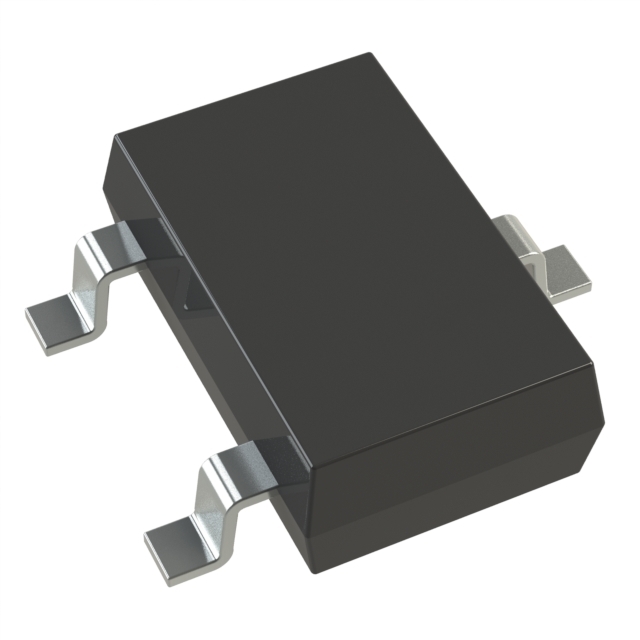

Same model may have multiple batches, images only for reference.
PDTA113EU,115 Nexperia USA Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PDTA113EU,115

Part No PDTA113EU,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS PNP 50V SOT323
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Transistor Type PNP - Pre-Biased
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 50 V
Resistors Included R1 and R2
Resistor - Base (R1) 1 kOhms
Resistor - Emitter Base (R2) 1 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 40mA, 5V
Vce Saturation (Max) @ Ib, Ic 150mV @ 1.5mA, 30mA
Current - Collector Cutoff (Max) 1µA
Power - Max 200 mW
Mounting Type Surface Mount
Case / Package SC-70, SOT-323
Supplier Device Package SOT-323
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1494795-PDTA113EU,115
Ultra Librarian 3D Model Ultra Librarian PDTA113EU,115 CAD Model
