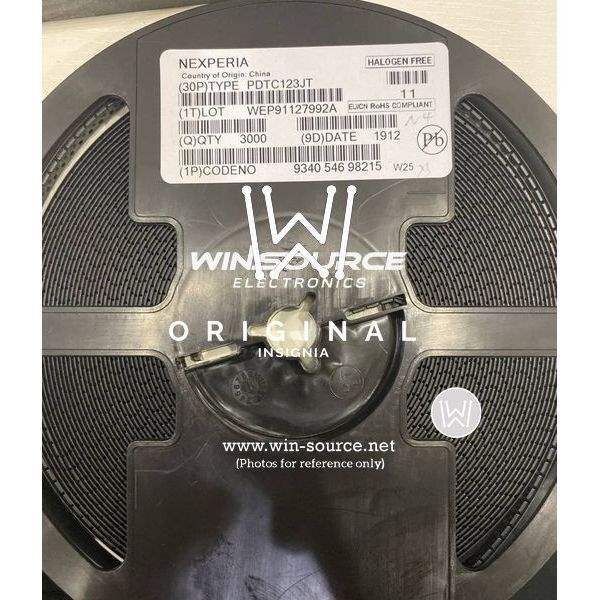

PDTC123JT,235 Nexperia USA Inc. PDTC123JT,235 label picture PDTC123JT,235 real image
Same model may have multiple batches, images only for reference.
PDTC123JT,235 Nexperia USA Inc. PDTC123JT,235 label picture PDTC123JT,235 real image
PDTC123JT,235 Nexperia USA Inc. PDTC123JT,235 label picture PDTC123JT,235 real image
Same model may have multiple batches, images only for reference.

PDTC123JT,235

Part No PDTC123JT,235
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS NPN 250MW TO236AB
Datasheet
PDTC123JT,235 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Transistor Polarity NPN - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 2.2k
Resistor - Emitter Base (R2) (Ohms) 47k
Typical Gain (hFE) (Min) 100 @ 10mA, 5V
Max Vce (sat) 100mV @ 250μA, 5mA
Collector Cut-off Current(Max) 1μA
Maximum Power Dissipation 250mW
Mounting SMD (SMT)
Case / Package TO-236AB (SOT23)
Win Source Part Number 1087214-PDTC123JT,235
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian PDTC123JT,235 CAD Model

Description

The Nexperia USA Inc. PDTC123JT,235 is a pre-biased NPN transistor designed for use in discrete semiconductor products.

  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 50V
  • Typical Gain (hFE) (Min): 100 @ 10mA, 5V
  • Maximum Power Dissipation: 250mW
  • Mounting Type: SMD (SMT)
  • Package: TO-236AB (SOT23)
  • Collector Cut-off Current (Max): 1μA
  • Max Vce (sat): 100mV @ 250μA, 5mA
  • Supply and Demand Status: limited
  • Common Applications: industrial applications
