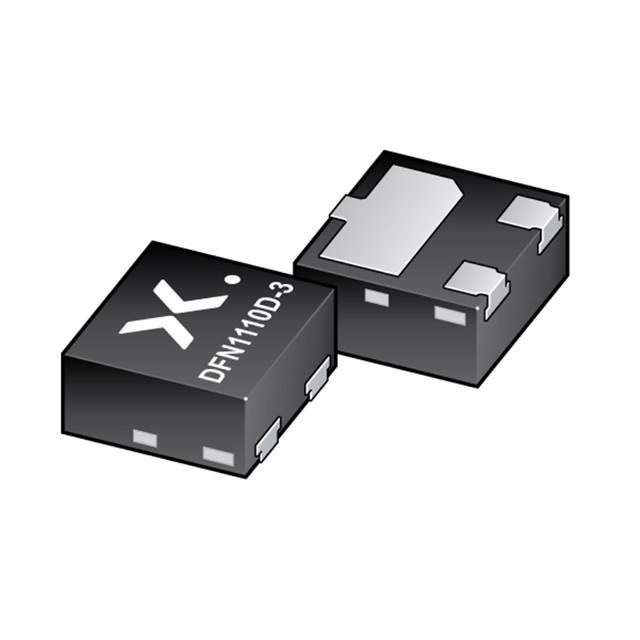

PDTC143EQB-QZ Real Image
Same model may have multiple batches, images only for reference.

PDTC143EQB-QZ

Part No PDTC143EQB-QZ
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single, Pre - Biased
Description PDTC143EQB-Q/SOT8015/DFN1110D-  /  Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 230 MHz Surface Mount, Wettable Flank DFN1110D-3
Datasheet
PDTC143EQB-QZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - Bipolar (BJT) - Single, Pre-Biased
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Transistor Type NPN - Pre-Biased
Current - Collector (Ic) (Max) 100 mA
Voltage - Collector Emitter Breakdown (Max) 50 V
Resistor - Base (R1) 4.7 kOhms
Resistor - Emitter Base (R2) 4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce 30 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic 150mV @ 500µA, 10mA
Current - Collector Cutoff (Max) 1µA
Frequency - Transition 230 MHz
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1110D-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0075
Other Names 1727-PDTC143EQB-QZDKR,1727-PDTC143EQB-QZTR,934663479147,1727-PDTC143EQB-QZCT
Standard Package 5,000
Win Source Part Number 968098-PDTC143EQB-QZ
Ultra Librarian 3D Model Ultra Librarian PDTC143EQB-QZ CAD Model

Description

The PDTC143EQB-QZ is a pre-biased NPN bipolar transistor that belongs to the automotive AEC-Q101 series.

  • Voltage - Collector Emitter Breakdown (Max): 50 V
  • Current - Collector (Ic) (Max): 100 mA
  • Package: Surface mount package with a wettable flank
  • Standard Package: 5,000
  • Manufacturer: Nexperia USA Inc
