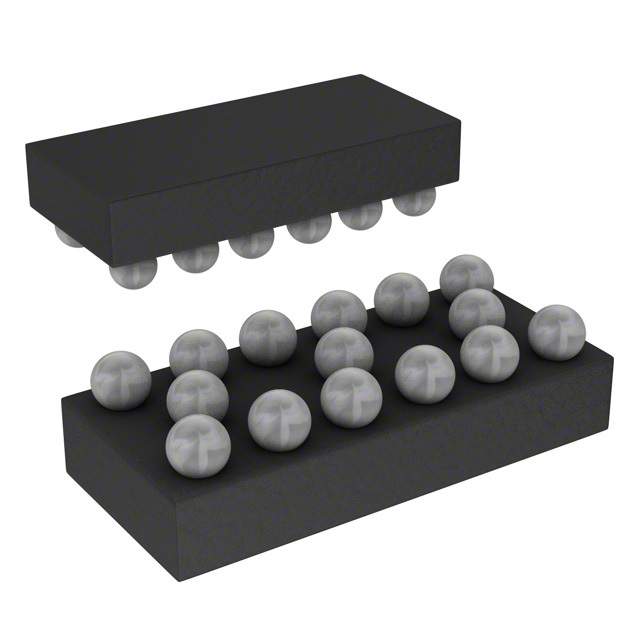

Same model may have multiple batches, images only for reference.
PEMI6CSP/RW,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PEMI6CSP/RW,135

Part No PEMI6CSP/RW,135
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/30PF SMD
Datasheet
PEMI6CSP/RW,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 6
Center / Cutoff Frequency 98MHz (Cutoff)
Attenuation Value 32dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 100
Current 33mA
Values R = 100 Ohms, C = 30pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, PCS, WAN
Mounting SMD (SMT)
Dimension 0.093" L x 0.041" W (2.36mm x 1.05mm)
Height 0.026" (0.65mm)
Win Source Part Number 1087496-PEMI6CSP/RW,135
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian PEMI6CSP/RW,135 CAD Model

Description

The PEMI6CSP/RW,135 from Nexperia USA Inc. is a low pass filter that is designed for use in LAN, PCS, and WAN applications.

  • Application: LAN, PCS, and WAN
  • Channels: Six
  • Filter Order: 2nd
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Status: Obsolete (EOL)
  • Packaging: Reel
  • Units per Package: 4,500
  • ESD Protection: Yes
  • Operating Temperature Range: -40°C to 85°C
