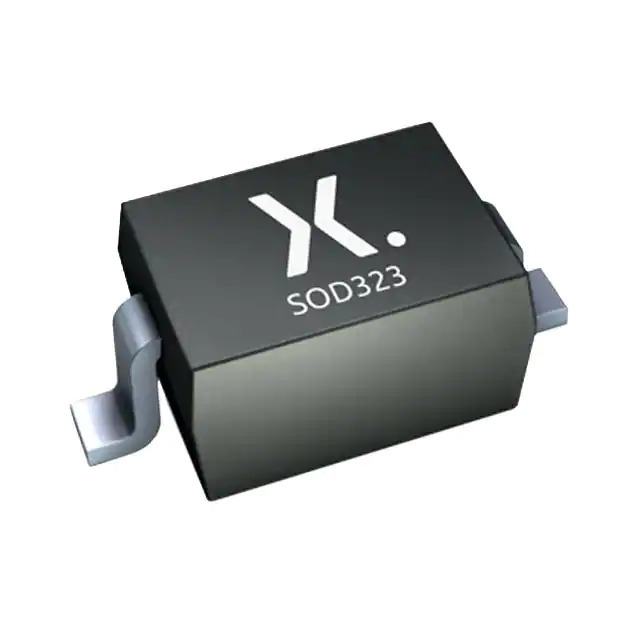

PESD1LIN,135

Name: PESD1LIN,135
Brand: Nexperia USA Inc.
SKU: 1362263
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD1LIN,135
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 15VWM 24VWM SOD323 / 44V, 70V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Datasheet	PESD1LIN,135 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Product Status	Not For New Designs
Type	Zener
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	15V (Max), 24V (Max)
Voltage - Breakdown (Min)	17.1V
Voltage - Clamping (Max) @ Ipp	44V, 70V
Current - Peak Pulse (10/1000µs)	3A (8/20µs)
Power - Peak Pulse	160W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	13pF @ 1MHz
Temperature Range - Operating	-65°C ~ 150°C (TA)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Base Product Number	PESD1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	1362263-PESD1LIN,135
Ultra Librarian 3D Model	Ultra Librarian PESD1LIN,135 CAD Model

Alternative Products

Description

The PESD1LIN,135 is a transient voltage suppressor diode designed for use in circuit protection applications.

Series: Automotive, AEC-Q101
Manufacturer: Nexperia USA Inc.
Temperature Range: -65°C to 150°C
Channel: Bidirectional
Reverse Standoff Voltage: 15V (Max)
Breakdown Voltage: 17.1V
Clamping Voltage: 44V and 70V @ a peak pulse current of 3A (8/20μs)
Peak Power Rating: 160W
Capacitance: 13pF @ a frequency of 1MHz
Applications: Automotive
REACH: Unaffected
ECCN: EAR99
