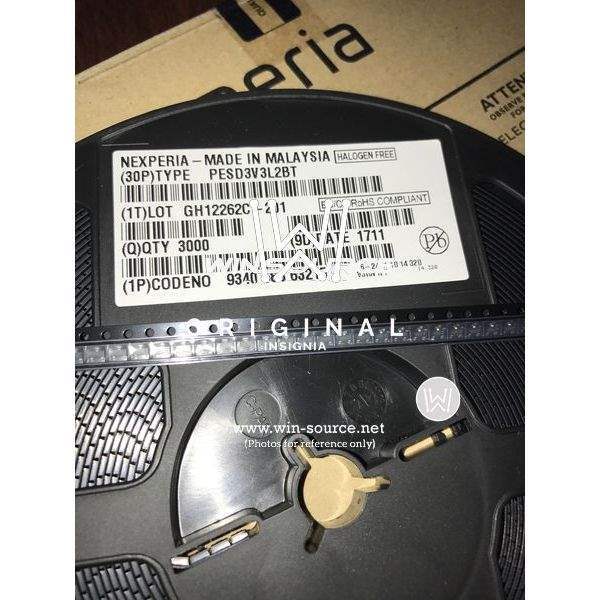

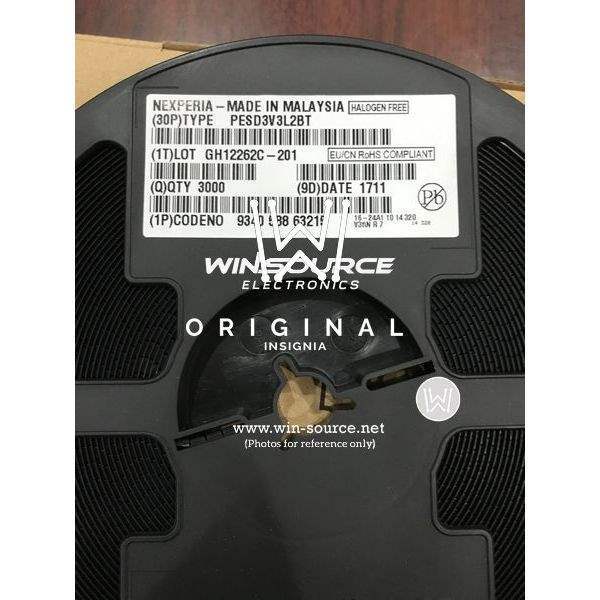

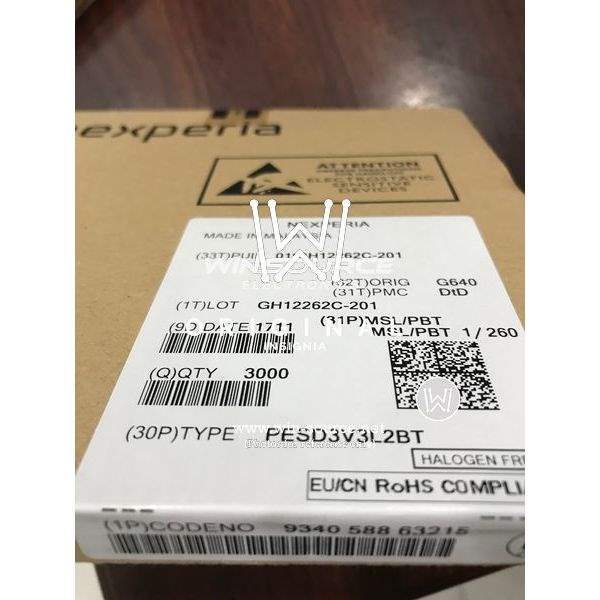

PESD3V3L2BT,215 Nexperia USA Inc. PESD3V3L2BT,215 real image PESD3V3L2BT,215 label picture PESD3V3L2BT,215 label picture 2
Same model may have multiple batches, images only for reference.
PESD3V3L2BT,215 Nexperia USA Inc. PESD3V3L2BT,215 real image PESD3V3L2BT,215 label picture PESD3V3L2BT,215 label picture 2
PESD3V3L2BT,215 Nexperia USA Inc. PESD3V3L2BT,215 real image PESD3V3L2BT,215 label picture PESD3V3L2BT,215 label picture 2
Same model may have multiple batches, images only for reference.

PESD3V3L2BT,215

Part No PESD3V3L2BT,215
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 26VC SOT23
Datasheet
PESD3V3L2BT,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 2
STAND-OFF Voltage (Vwm) 3.3V (Max)
Minimum Breakdown Voltage 5.8V
Max Clamping Voltage 26V
Peak Pulse Current(Ippm) 15A (8/20μs)
Power Dissipation - Pd 350W
Applications General Purpose
Capacitance @ Frequency 101pF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TA)
Mounting SMD (SMT)
Case / Package SOT-23 (TO-236AB)
Win Source Part Number 1087553-PESD3V3L2BT,215
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PESD3V3L2BT,215 CAD Model

Description

The Nexperia USA Inc. PESD3V3L2BT,215 is a bidirectional zener diode with a stand-off voltage of 3.3V and a minimum breakdown voltage of 5.8V.

  • Maximum Clamping Voltage: 26V
  • Peak Pulse Current: 15A
  • Capacitance: 101pF @ 1MHz
  • Package: SOT-23 (TO-236AB)
  • Power Dissipation: 350W
  • Application: Circuit Protection
