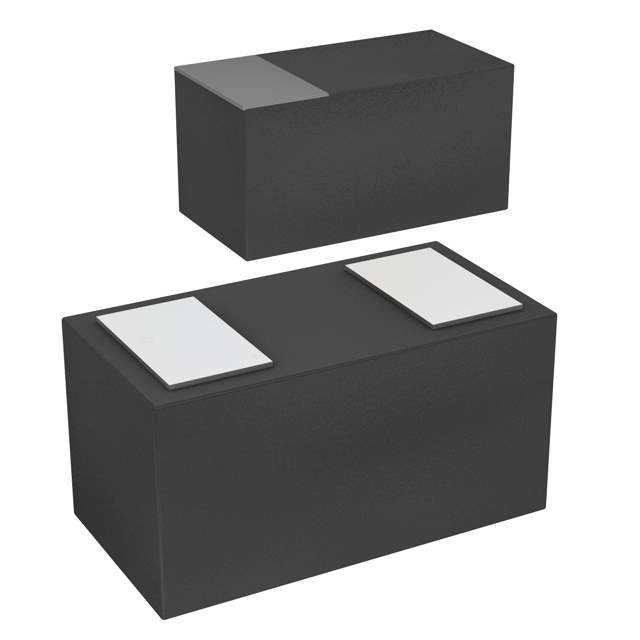

PESD3V3U1BCSFYL Real Image
Same model may have multiple batches, images only for reference.

PESD3V3U1BCSFYL

Part No PESD3V3U1BCSFYL
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 12VC DSN0603-2 / 12V Clamp 5.4A (8/20µs) Ipp Tvs Diode Surface Mount DSN0603-2
Datasheet
PESD3V3U1BCSFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Nexperia USA Inc.
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4.5V
Voltage - Clamping (Max) @ Ipp 12V
Current - Peak Pulse (10/1000µs) 5.4A (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 5.3pF @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Base Product Number PESD3V3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 9340 691 01315,568-13307-2,934069101315,568-13307-1,568-13307-6
Standard Package 9,000
Win Source Part Number 1057868-PESD3V3U1BCSFYL
Ultra Librarian 3D Model Ultra Librarian PESD3V3U1BCSFYL CAD Model

Description

The PESD3V3U1BCSFYL is a bidirectional Zener diode designed for general-purpose applications.

  • Reverse Standoff Voltage: 3.3V
  • Breakdown Voltage: 4.5V
  • Clamping Voltage @ Peak Pulse Current: 12V
  • Capacitance: 5.3pF @ 1MHz
  • Peak Pulse Current: 5.4A @ 8/20μs
  • Package: Tape and reel
  • Standard Package: 9000
  • Package Size: 0201 (0603 Metric)
  • Supplier Device Package: DSN0603-2
  • Maximum Operating Temperature: 125°C
